Wabi Hub/H+Son Archetype Fixed Gear-Single Speed Wheelset

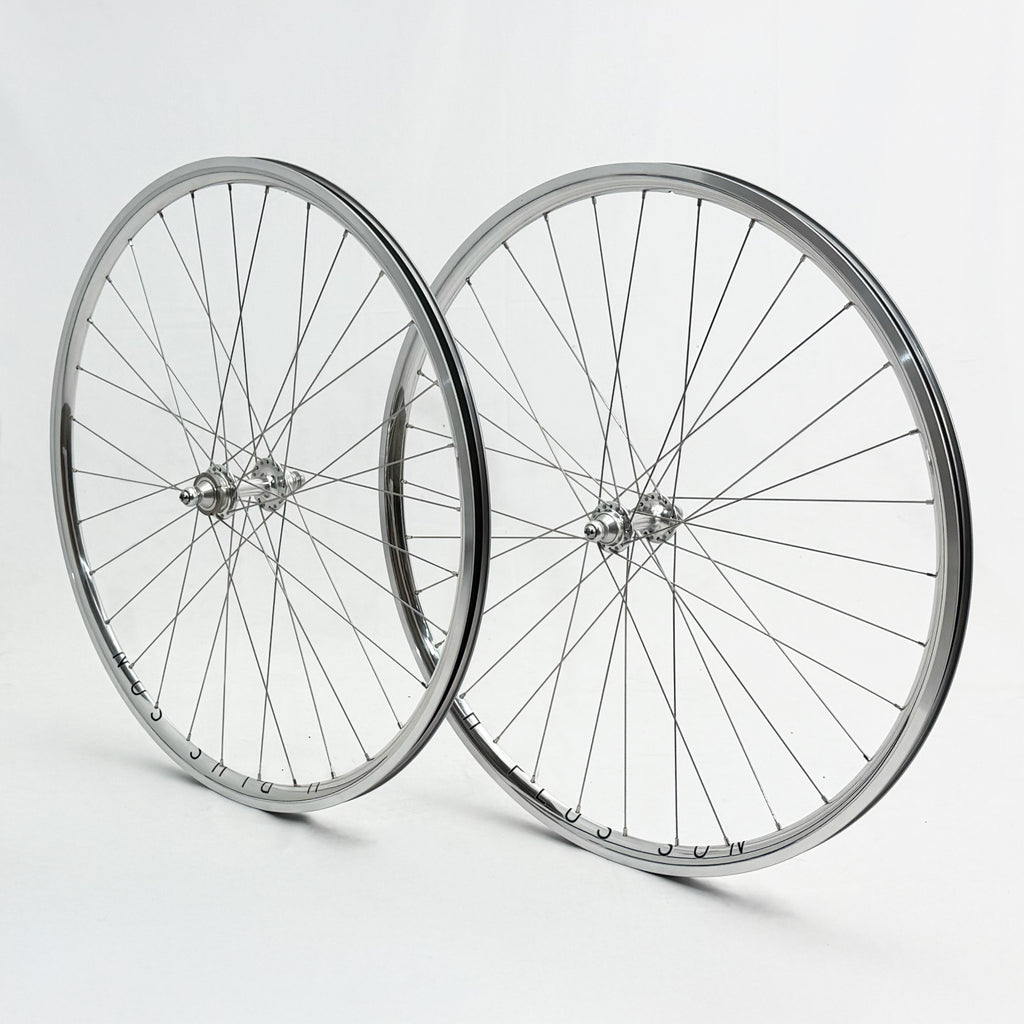

We built up some Archetypes with our Wabi hubs to bring you a sweet spot of durability, light weight, minimalist looks, and value. Coming in at only 1730 grams, it features our low-flange silver 32h fixed/fixed hubs, double-butted spokes in a 3x cross-laced configuration, and polished H+ Son Archetype 25mm profile rims.

Specs

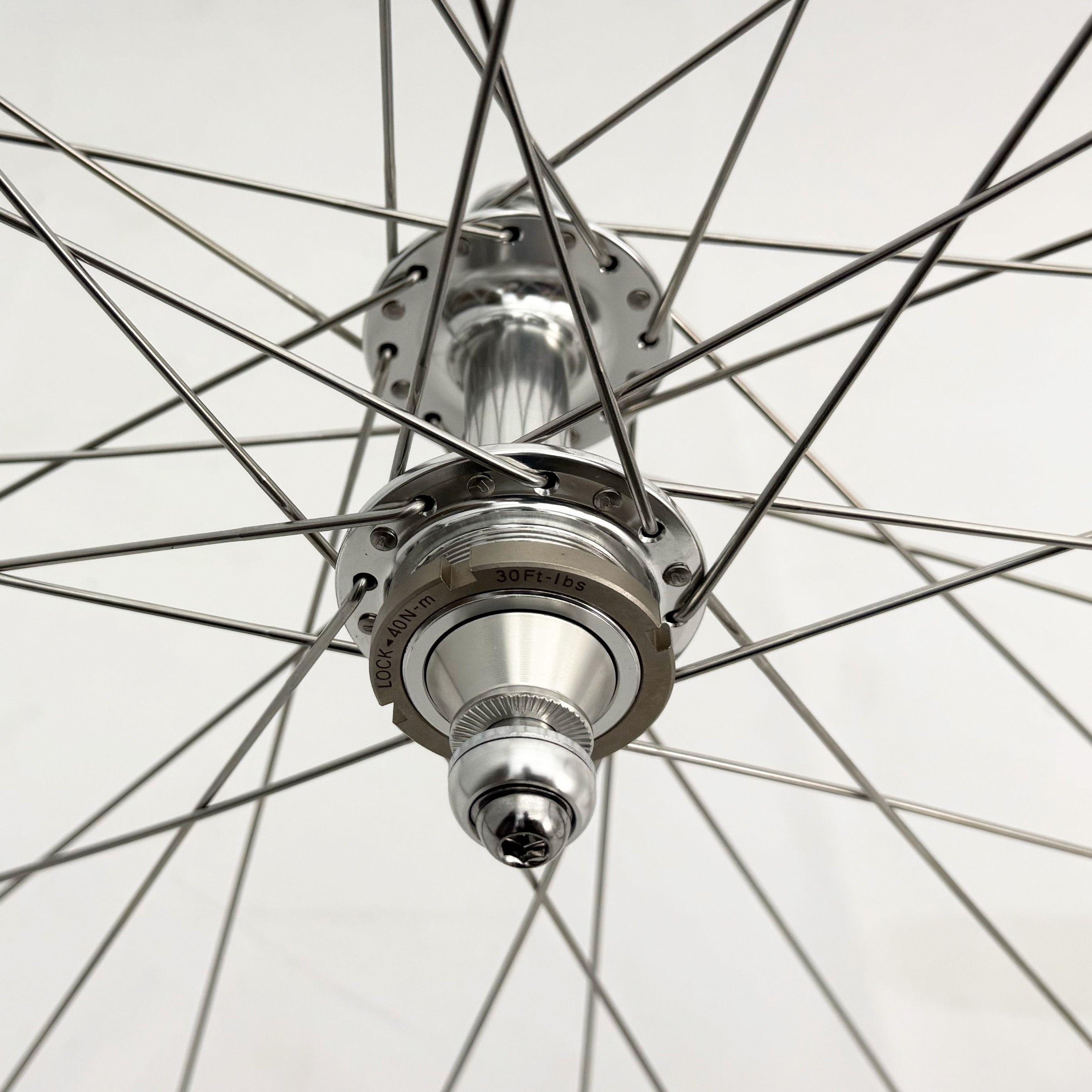

• Wabi low-flange silver hubs with silky smooth sealed bearing hubs.

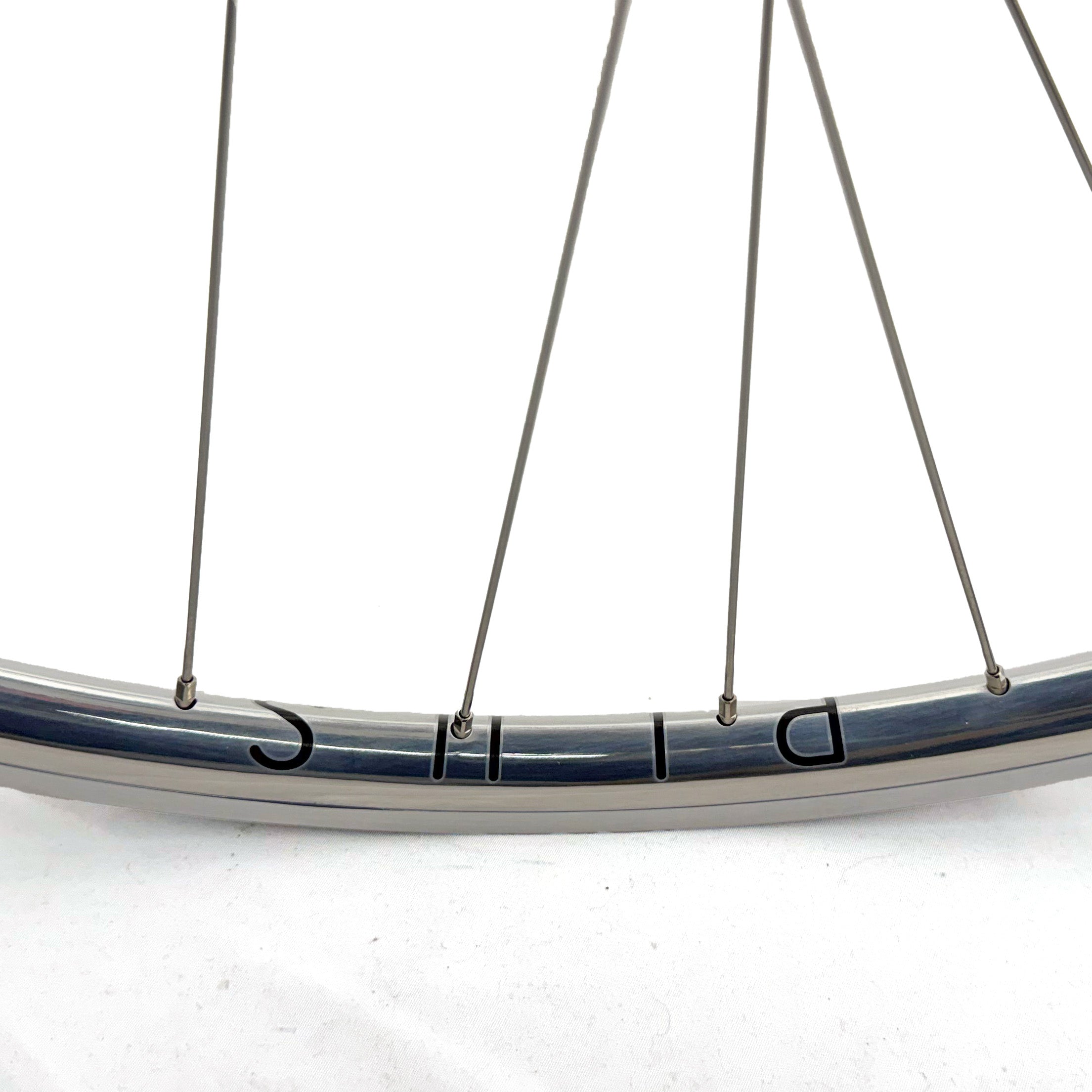

• H+Son Archetype 32h rims.
• FX/FX rear flip-flop hub can take freewheels or fixed cogs.
• Bolt-on hollow axle design that is also quick-release compatible.
• Double-butted stainless spokes with silver brass nipples.
• 32H 3x cross-laced spokes on the front and rear
• 100mm front, 120mm rear axle width.
• 25mm deep, 23mm external width, and 18mm internal width rims.
• Machined braking surface
• Rim brake compatible.
• Includes 1x Wabi lockring
• Weight: Front: 840g, Rear: 890g

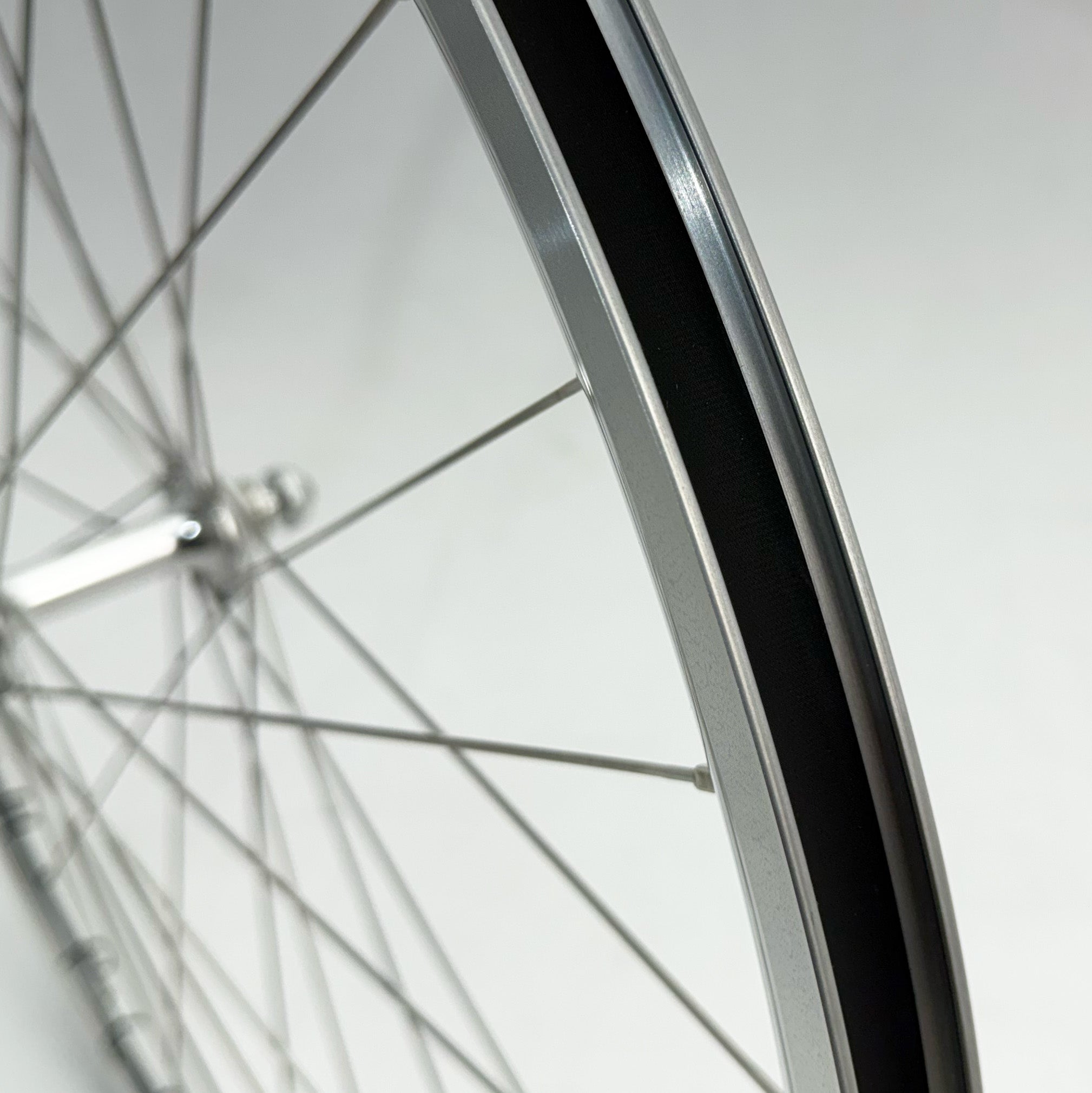

• Note: Rim tape included.

Notes

IMPORTANT: These wheels require rear dropouts that are at least 5mm thick. You'll need to use the provided chain tensioner to ensure the proper clamp if they are less than 5mm (or just at 5mm). See our installation page for more info.

Due to the varying thickness of fixed cogs, we recommend using the provided fixed cog spacer when installing a fixed cog to ensure a tight fit between the cog and the lockring. If you need a second spacer, let us know.

These wheels are only for 120mm rear dropout widths (OLD) and can't be used or adapted for wider dropout widths like 126mm.

Installation

See our installation page for guidance, including torque recommendations. Replacement wheel bearings are also available.
