Description

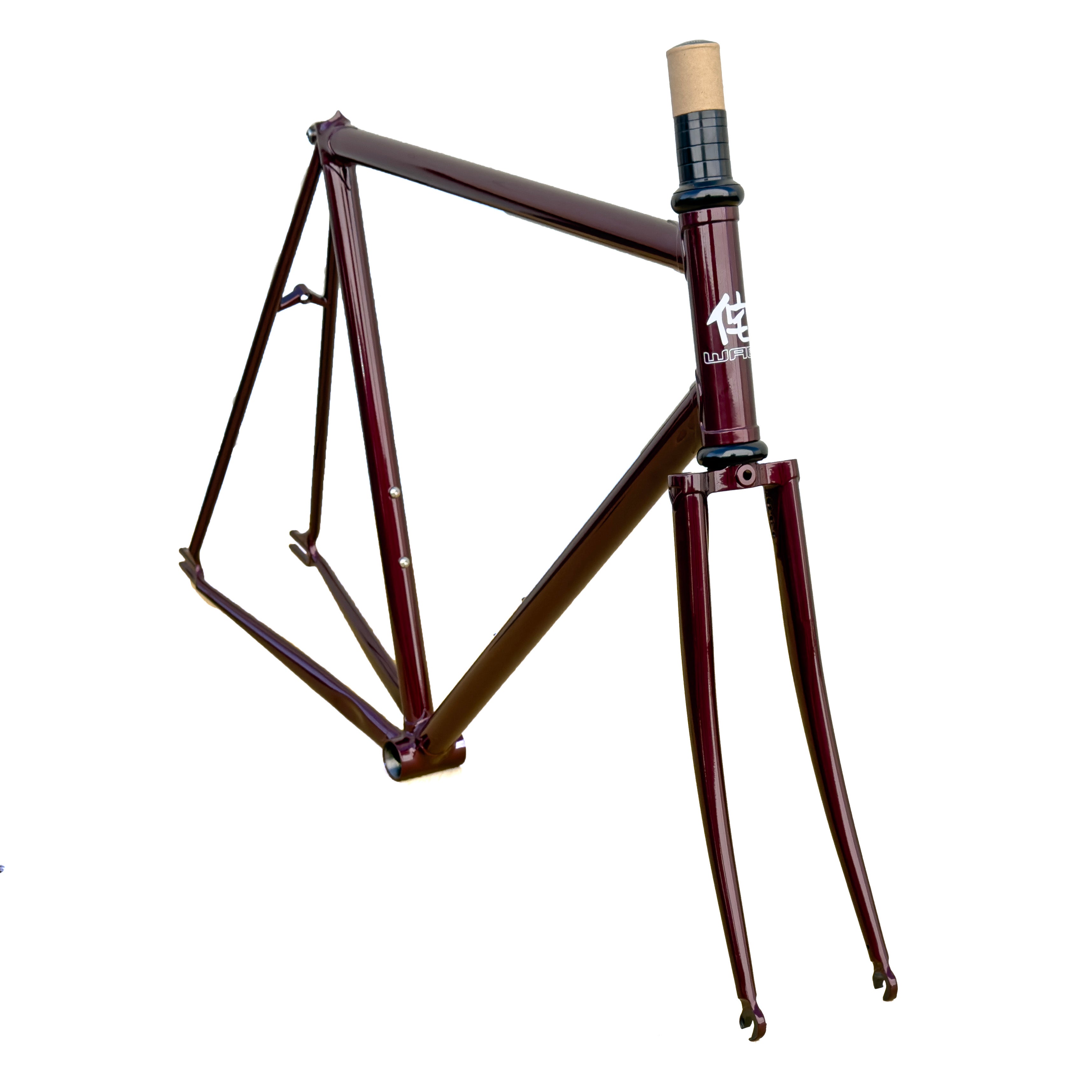

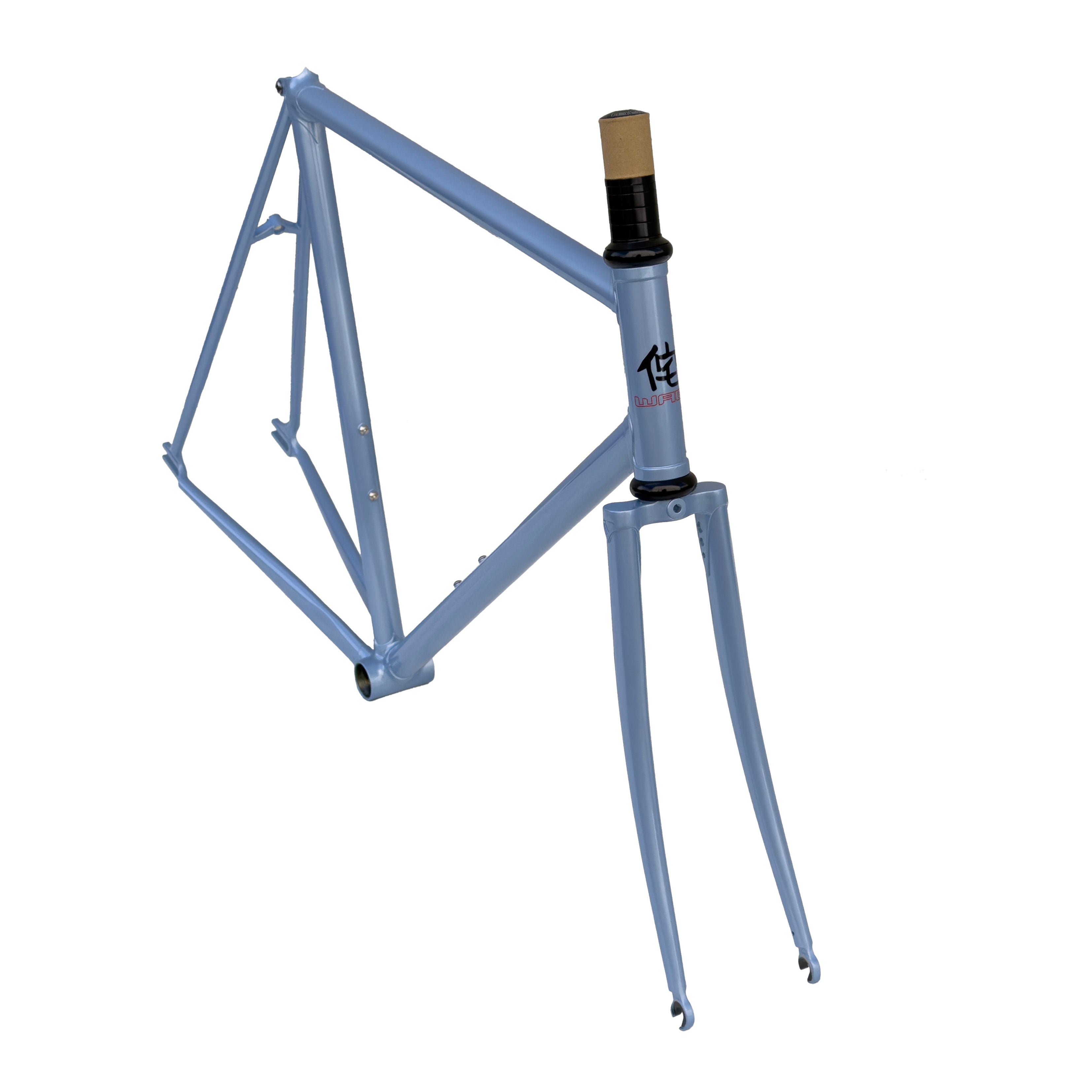

Our lugged frame features a timeless aesthetic that can go more retro or modern depending on how you design it.

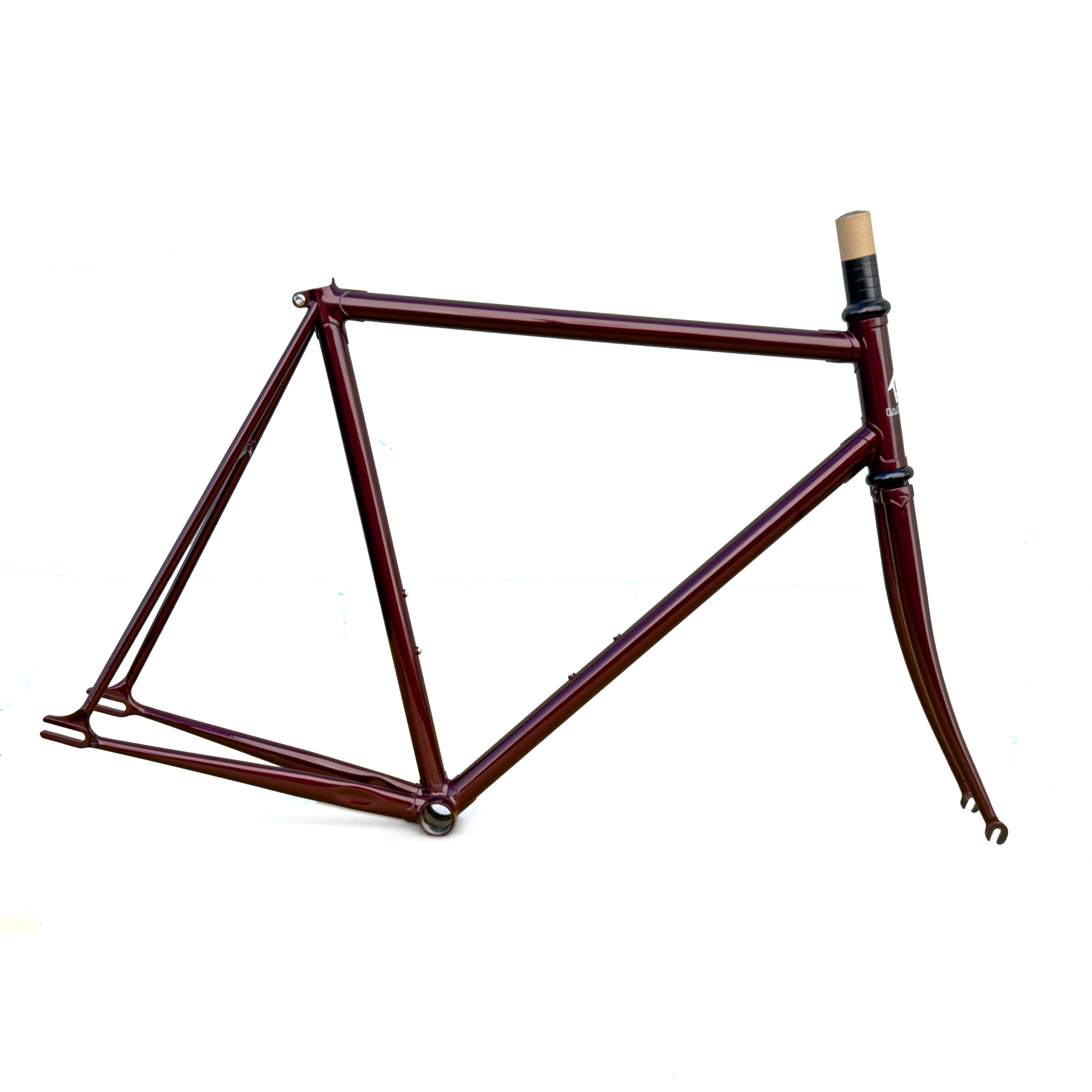

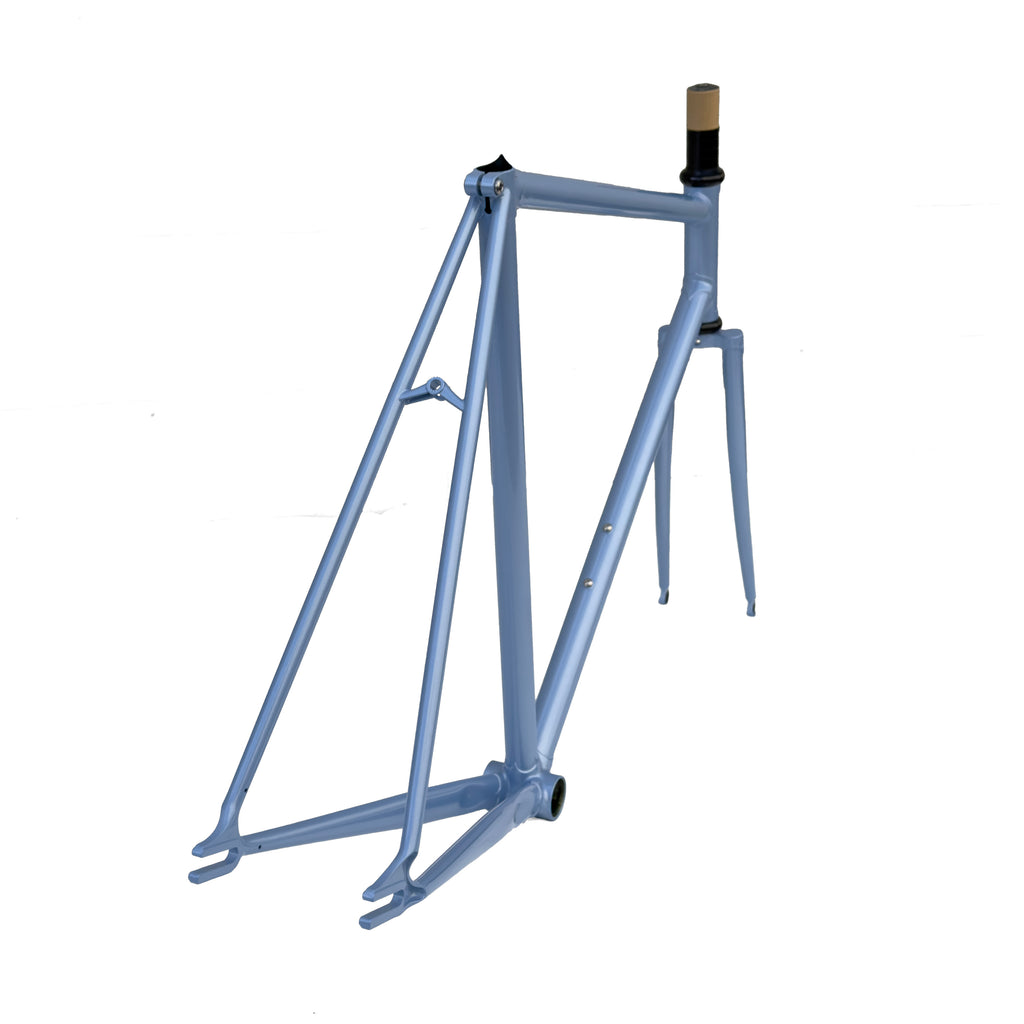

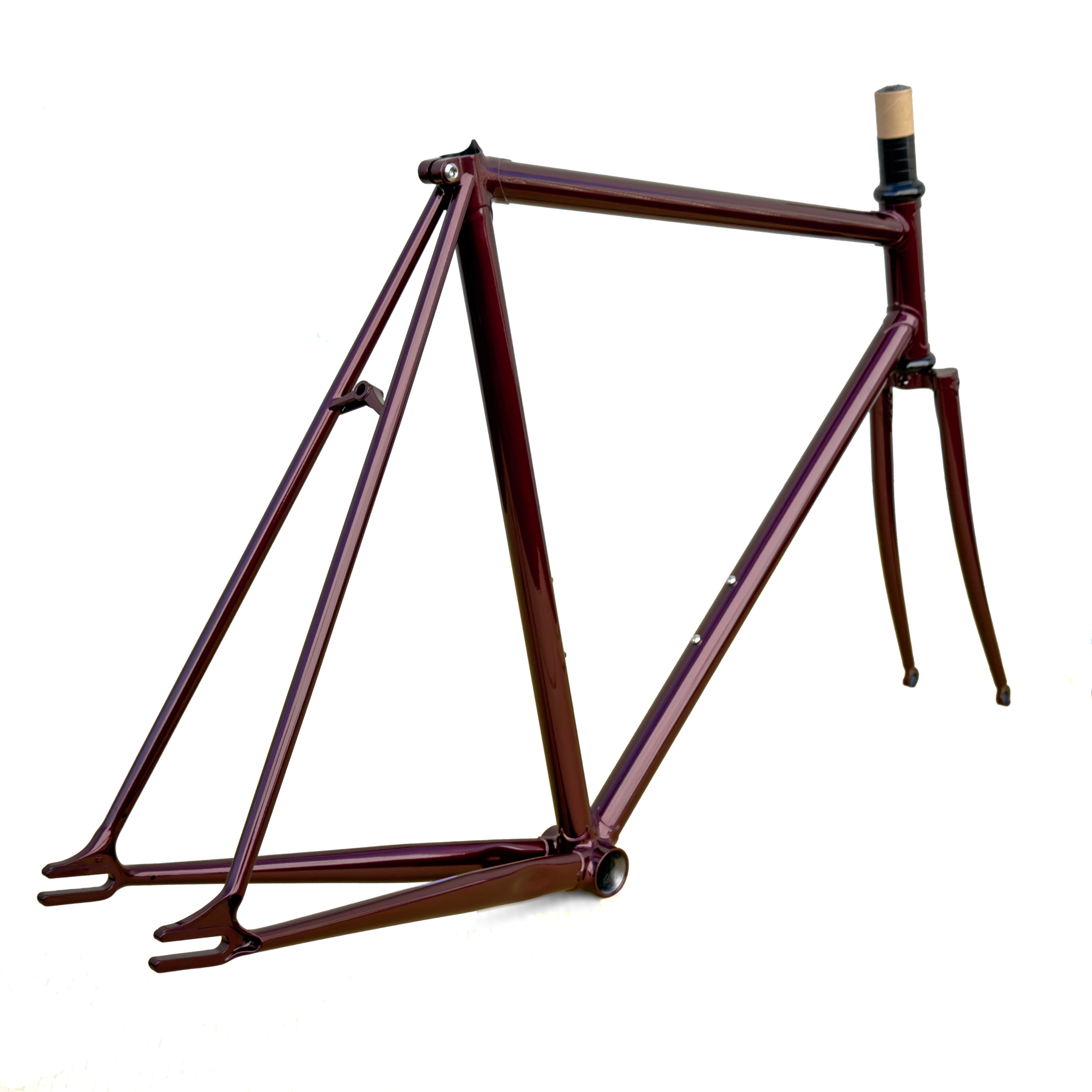

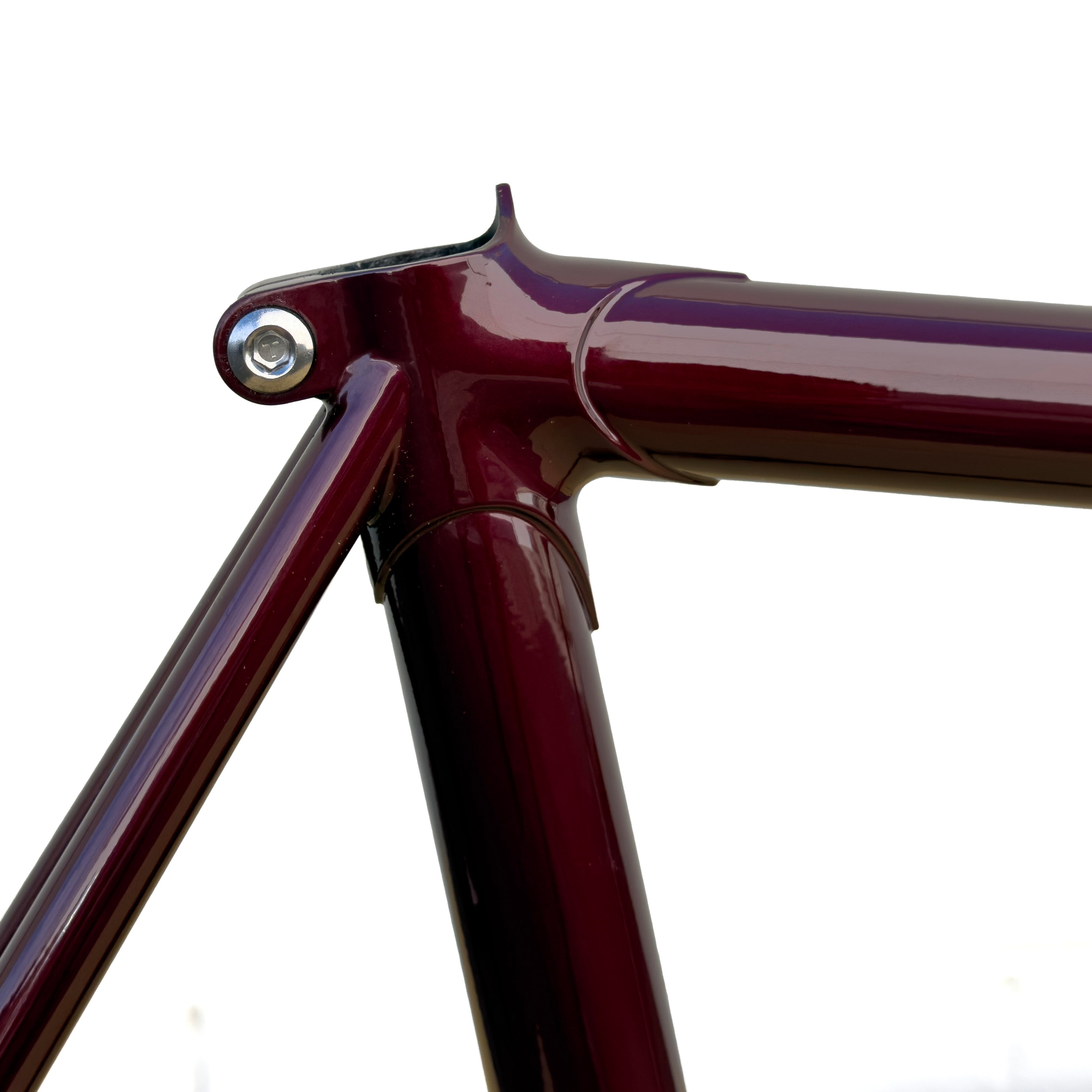

The frame is hand-built using seamless heat-treated, double-butted Reynolds 725 chromoly steel main tubes with forged track-style rear drops. There are braze-ons for two bottle cages on the down and seat tubes. It also features beautiful hand-brazed lugged construction.

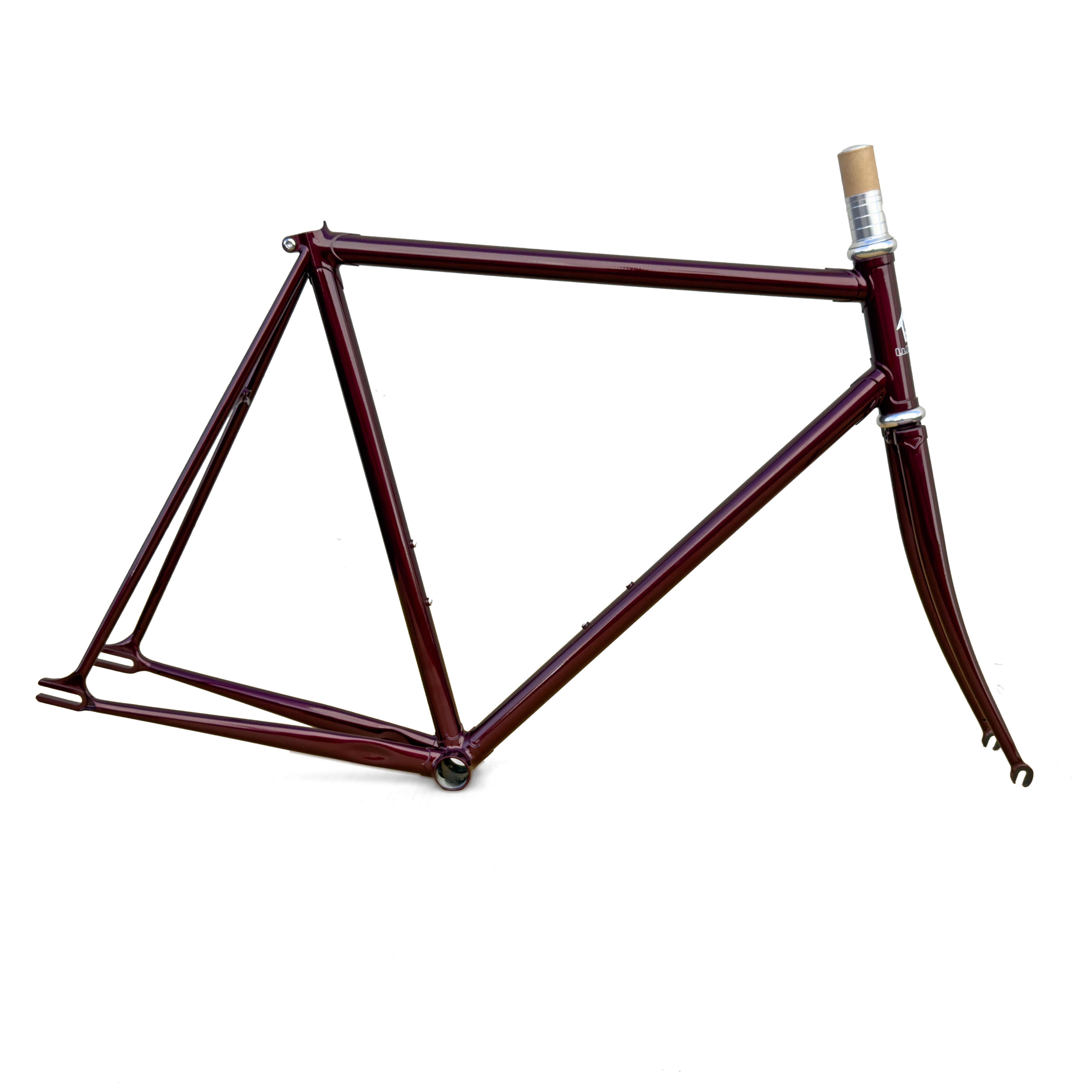

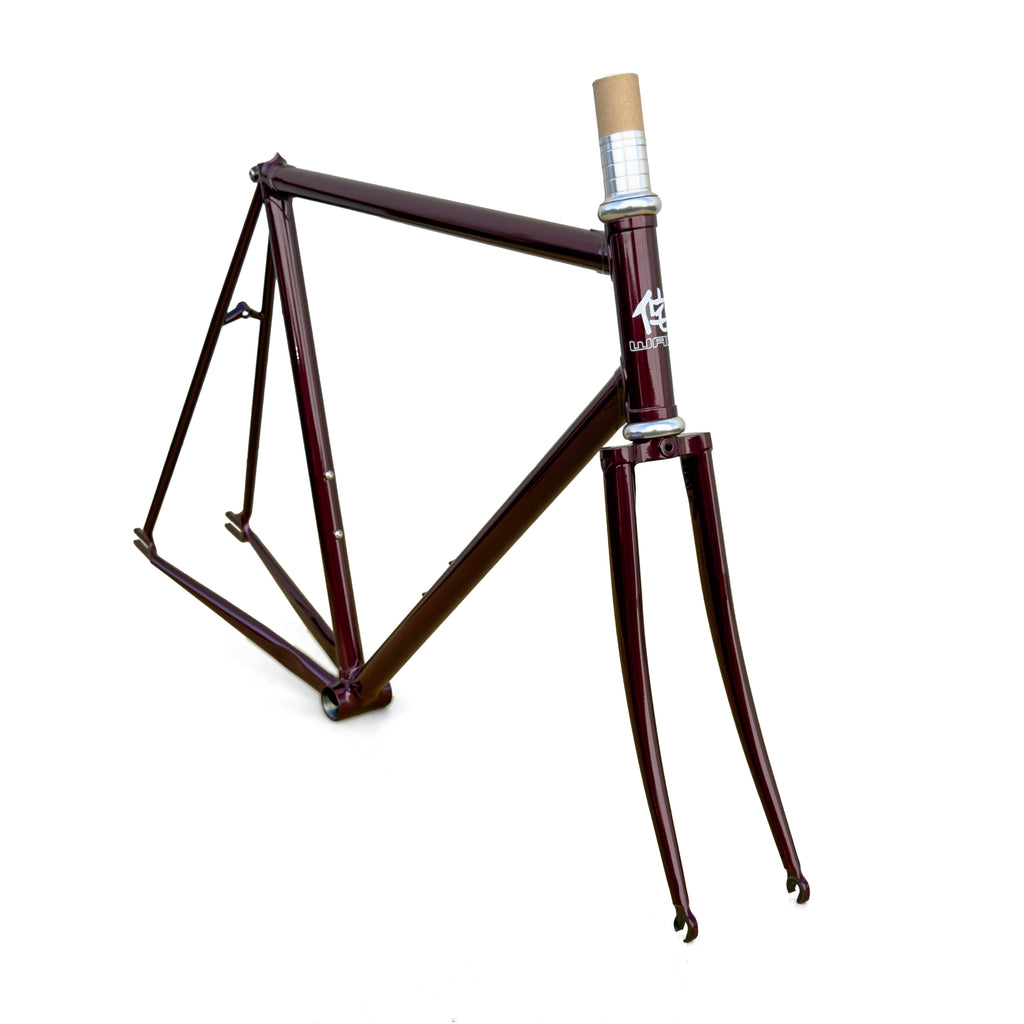

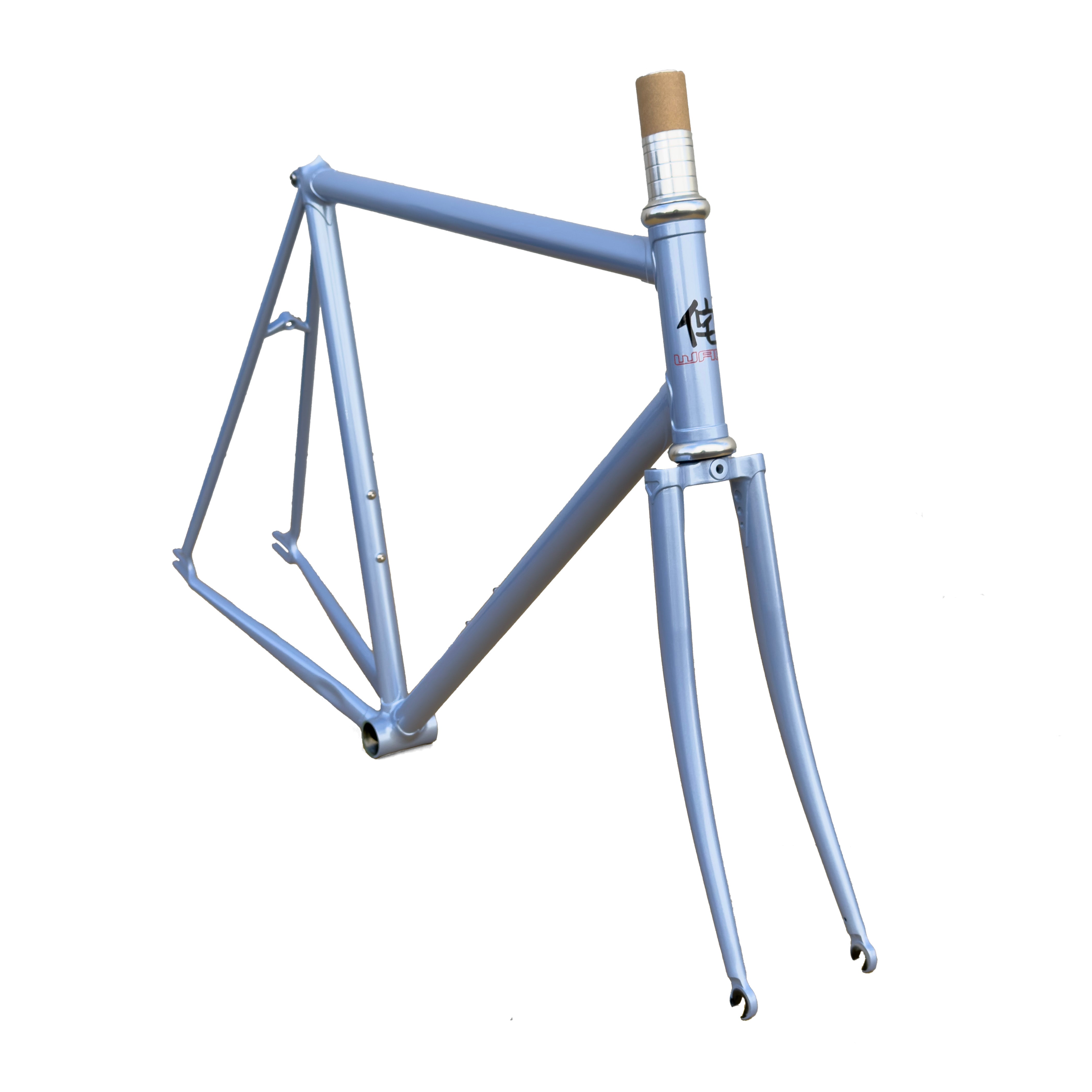

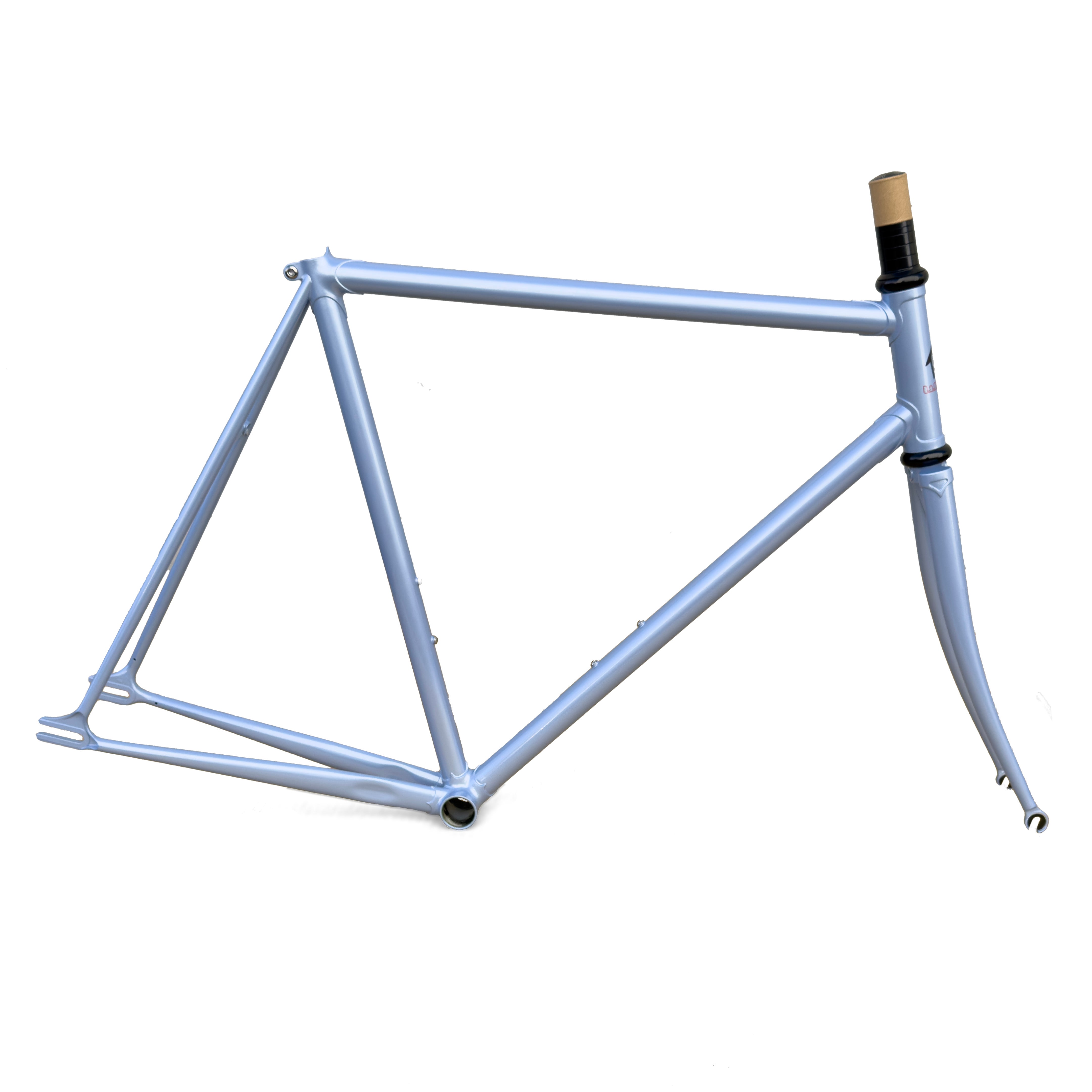

The fork features hand-brazed tapered chromoly steel with an investment cast crown, 1 1/8" steerer, and forged fork ends. It includes a Tange Seiki Technoglide headset with cartridge-type bearings. Choose your headset color from the dropdown menu.
The newest colors are Iron Wine, a metallic plum, and Platinum White, a pearlized white. Past colors still available include Sapphire Blue, a metallic blue, and Titanium Gray, a titanium-hued silver. Custom colors are also an option. See more info here.
Tech Specs

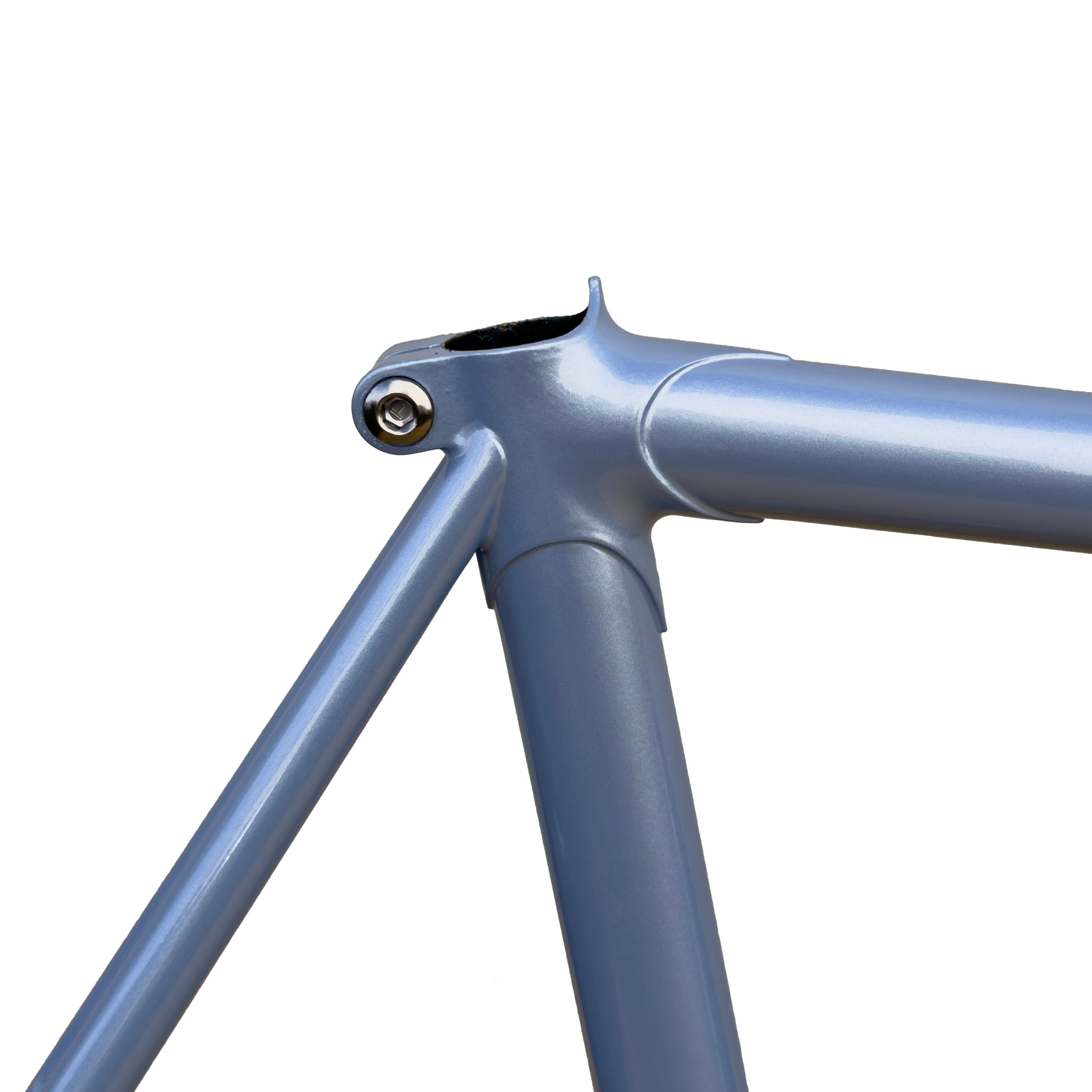

- Includes: Frame, fork, headset, and seat post clamp
- Weight: 5.9 lbs (55cm)
- Accepts 68mm English standard bottom brackets.
- Threadless 1-1/8" steerer tube
- 100m front dropout spacing; 120mm rear dropout spacing
- 27.2mm seatpost compatible
- Accommodates almost all track cranksets (tested to 135mm Q factor).
- Note: No fork, dropout or stay eyelets or chain stay bridge.
SIZING
We highly recommend reviewing our sizing page before purchasing. Look at both your height and your actual inseam / standover height. The guide below can also provide some general guidelines.
| RIDER HEIGHT | FRAME SIZE | STANDOVER HEIGHT |
| 5'4 - 5'7 | 49CM | 30.2IN |
| 5'7 - 5'10 | 52CM | 31.3IN |
| 5'10 - 6'1 | 55CM | 32.5IN |
| 6'1 - 6'3 | 58CM | 33.6IN |
| 6'3 - 6'6 | 60CM | 34.8IN |
Frame size is measured center-to-center of the seat tube. See more on our sizing page.
COMPONENT SIZING
Note that our frames are designed around a 170mm crank arm length, a 24mm setback seatpost and varying stem lengths (based on frame size and height). You can find our stem length recommendations under the 'DETERMINING BIKE COMPONENTS FIT' section on the sizing page. If you choose different components, it may impact the fit.
IMPORTANT NOTE ON COMPATIBILITY
We cannot guarantee the fit of any specific component set other than the ones we sell with our complete bikes. If you are planning a specific build please contact us to see if we are aware of any issues. Even so, we will be unable to offer refunds based on lack of fit with any third-party components.
