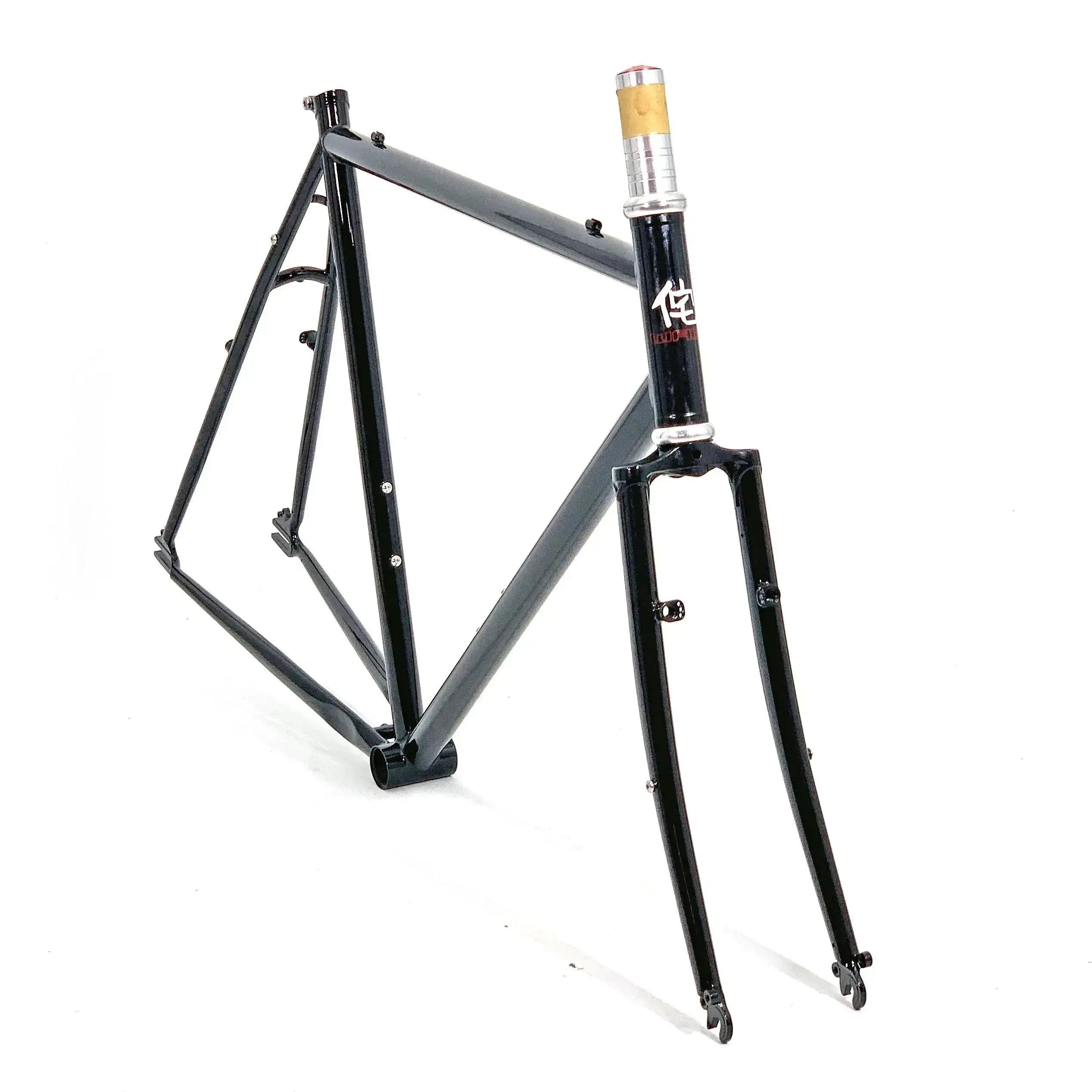

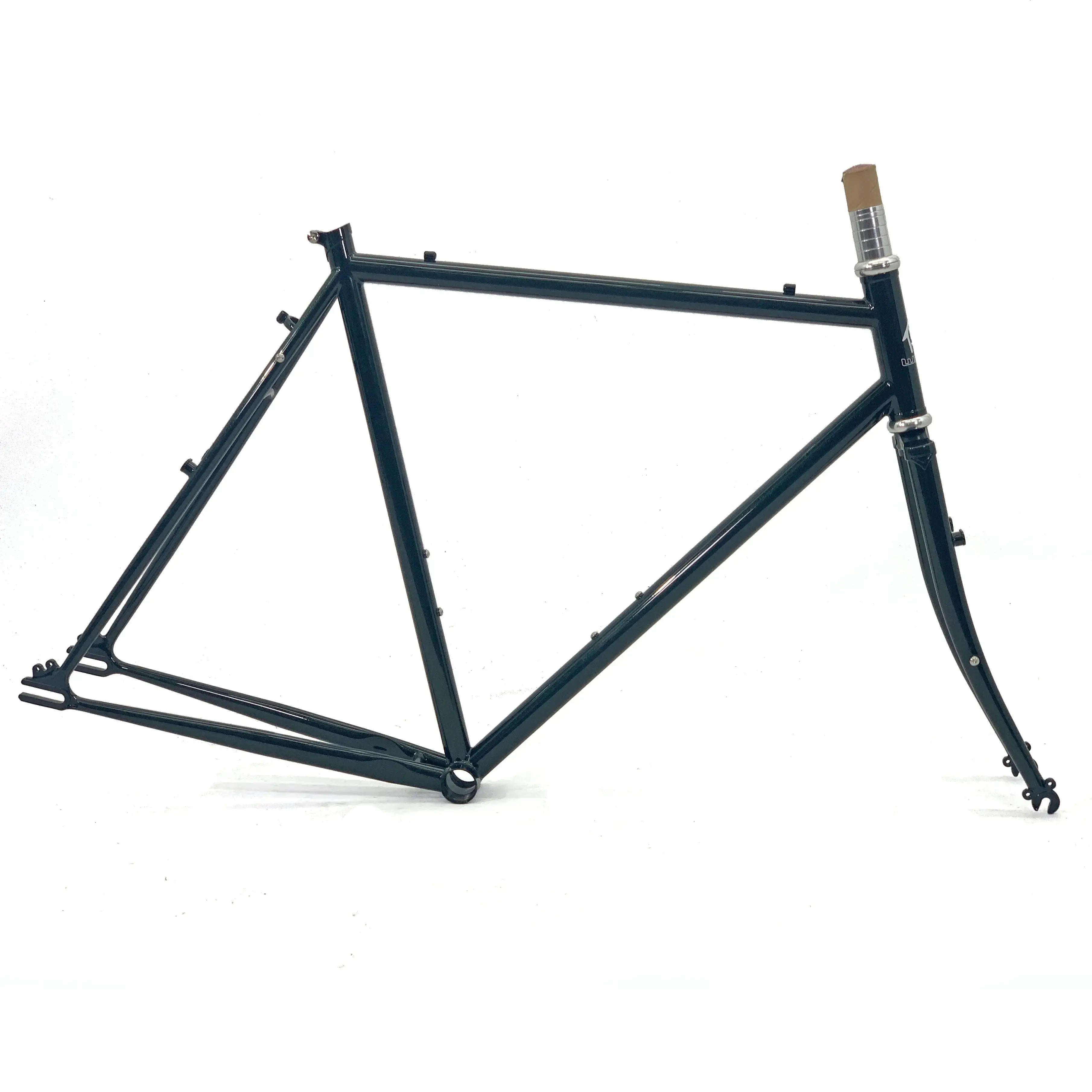

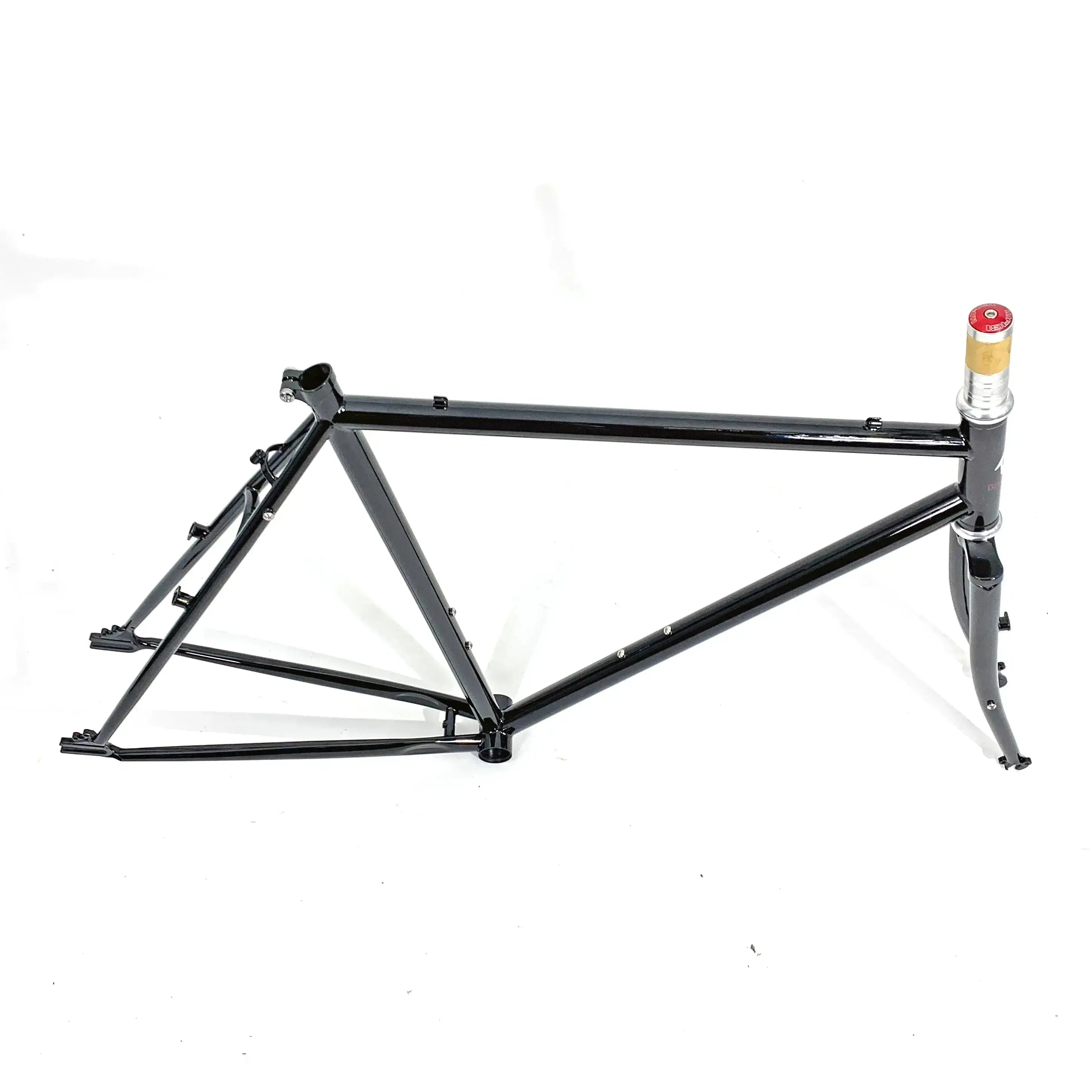

Wabi Thunder Frameset


Frame Size: 49cm
Color: Obsidian Black
Price:
Sale price$625.00

Description

The Wabi Thunder is a versatile frameset for urban or gravel adventures. With cantilever brakes and room for wide tires, this bike will take you wherever you want to go.

Check here for our latest estimated turnaround time for framesets. Timing can vary based on our backlog of orders. See link for more info.

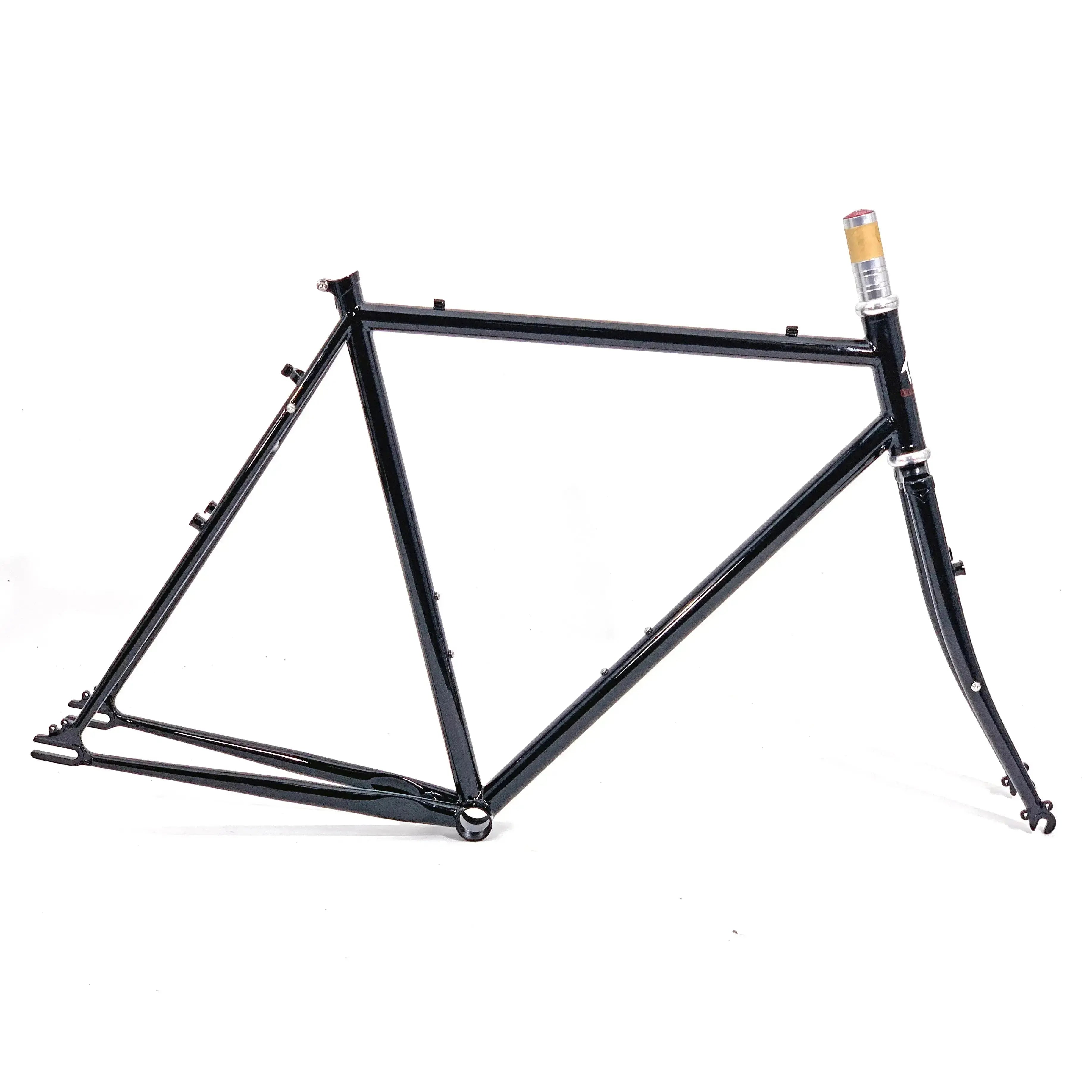

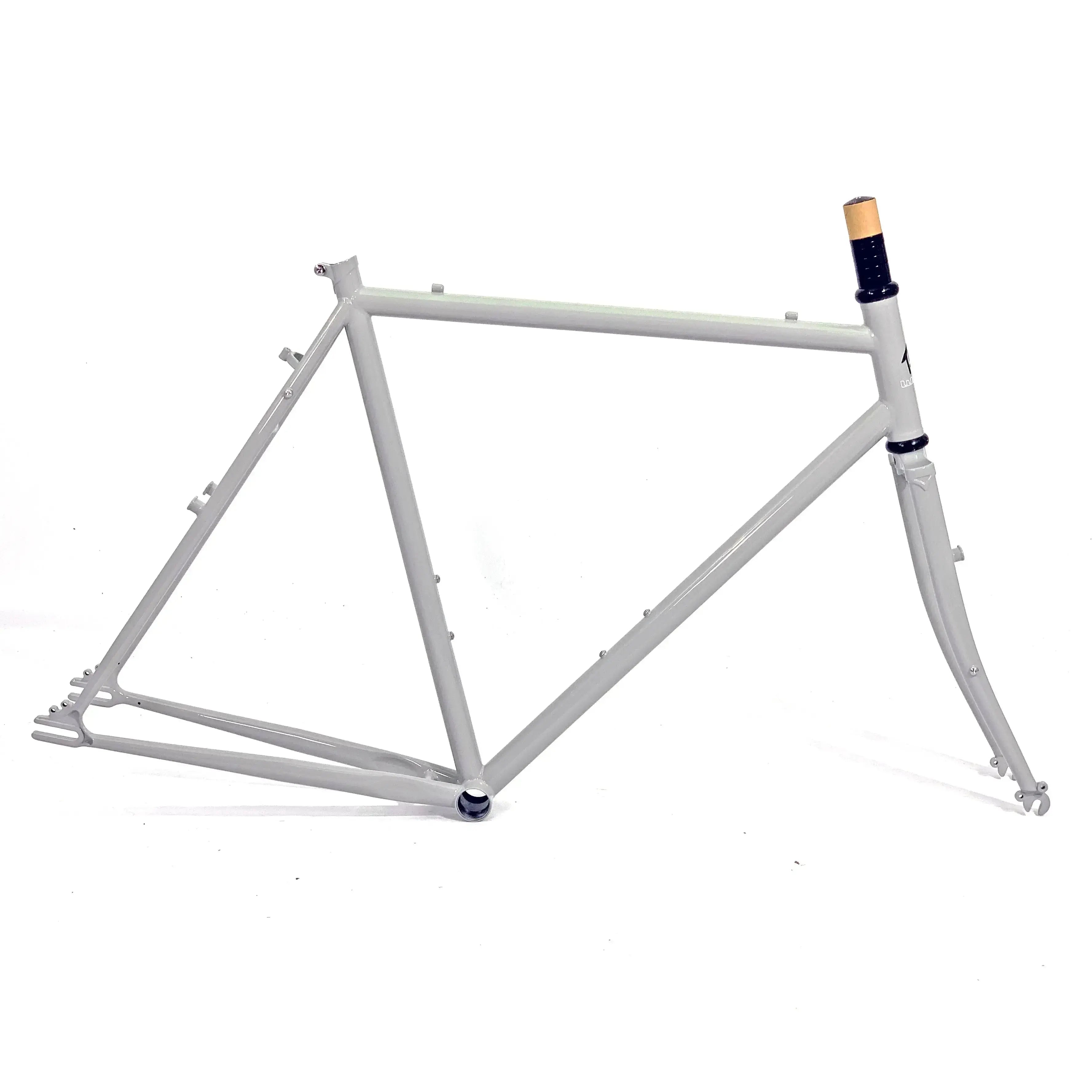

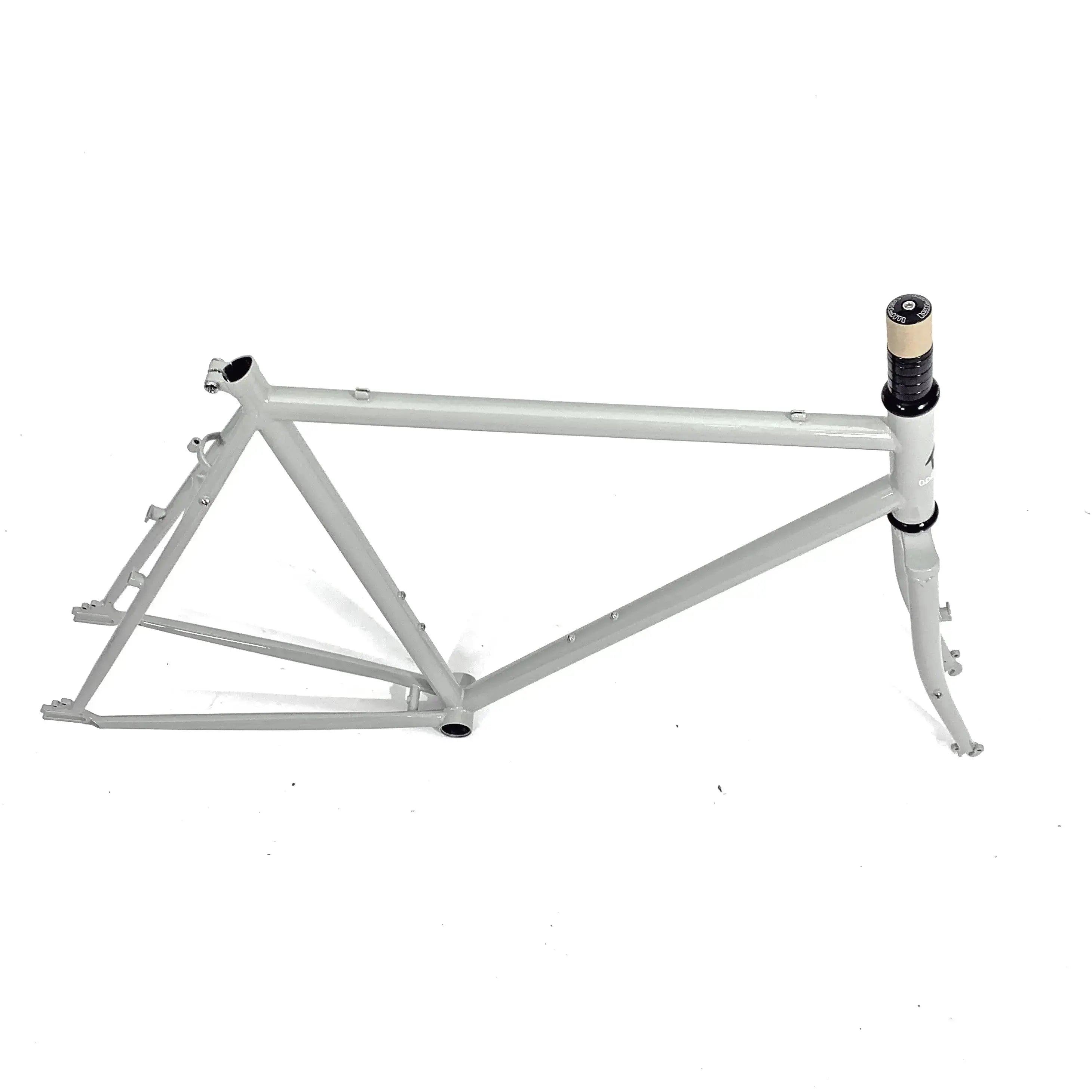

The new colors are Obsidian Black, a glossy black, and Glass Graya medium warm gray with a hint of green. Custom colors are also available (see HERE for more info).

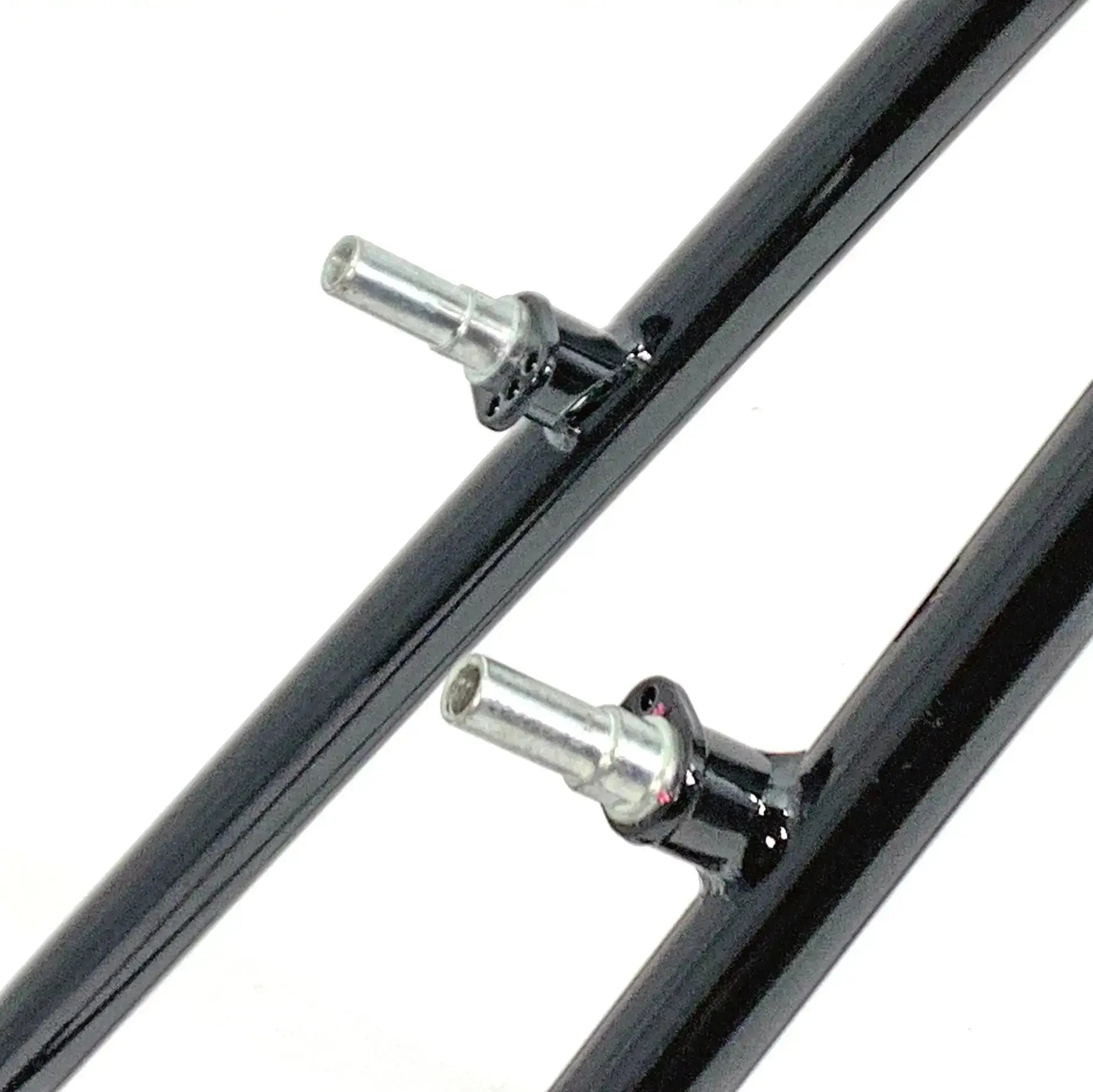

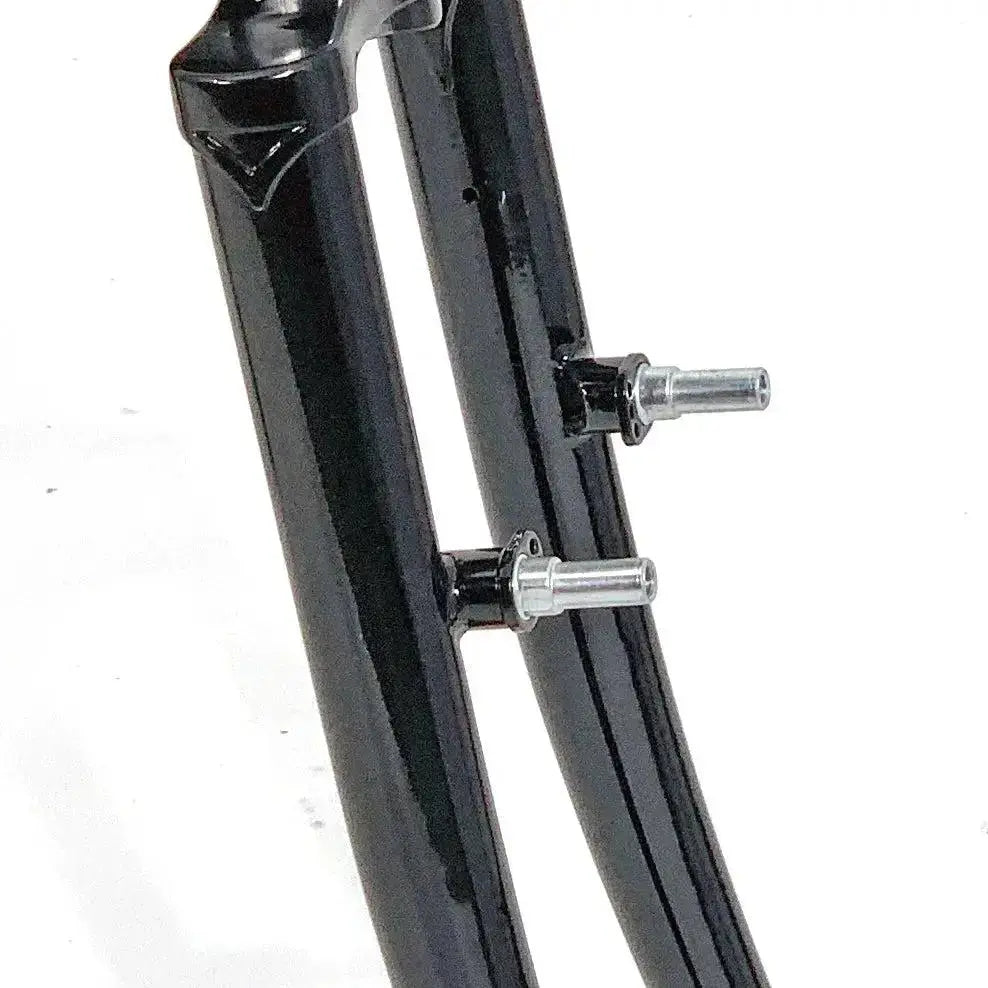

This updated frame now has removable cantilever brake posts. This provides a cleaner look when running brakeless/front brake only and allows post replacement, if necessary, down the line.

Note that we do not offer this frame in either 42cm or 60cm. We will bring back the 60cm in 2024.

Description

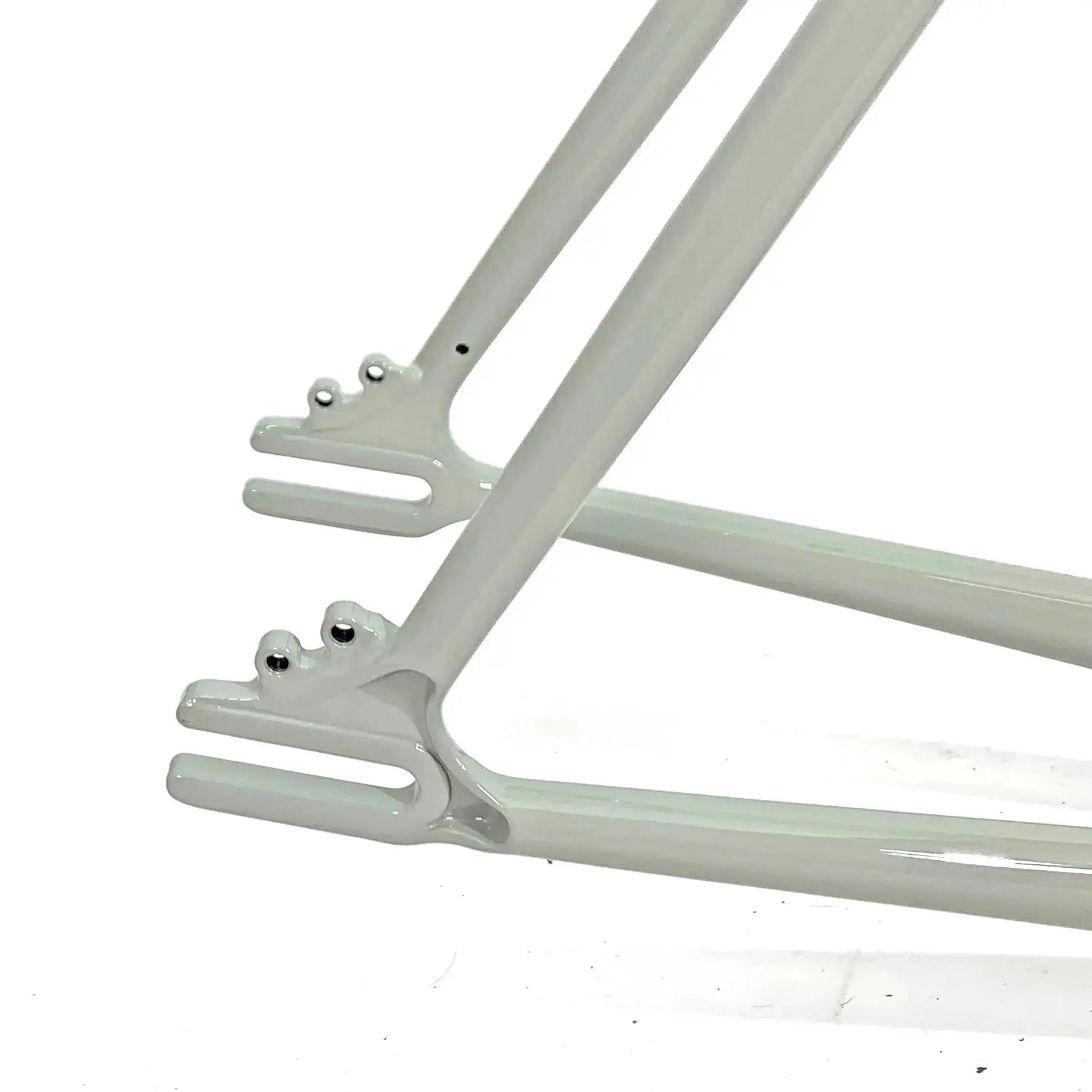

Frame: Hand-built using heat treated, double butted oversized Reynolds 725 steel main tubes with thin walled chromoly stays and forged horizontal rear drops. Complete set of braze-ons for racks and cages.

Fork: Hand brazed tapered chromoly steel with investment cast crown, 1 1/8" steerer and forged fork ends. Tange Seiki Technoglide headset with sealed cartridge type bearings.

Choose black or silver headset from the add-on option or email us afterward.

Tech Specs
  • Includes: Frame, fork and headset
  • Weight: 6.7 lbs (55cm)
  • Accepts 68mm English standard bottom brackets.
  • Threadless 1-1/8" steerer tube
  • 100m front dropout spacing; 120mm rear dropout spacing
  • 27.2mm seat post compatible with integrated seat post collar and bolt
  • Removable cantilever posts (included)
  • Two water bottle cage mounts (bolts included)

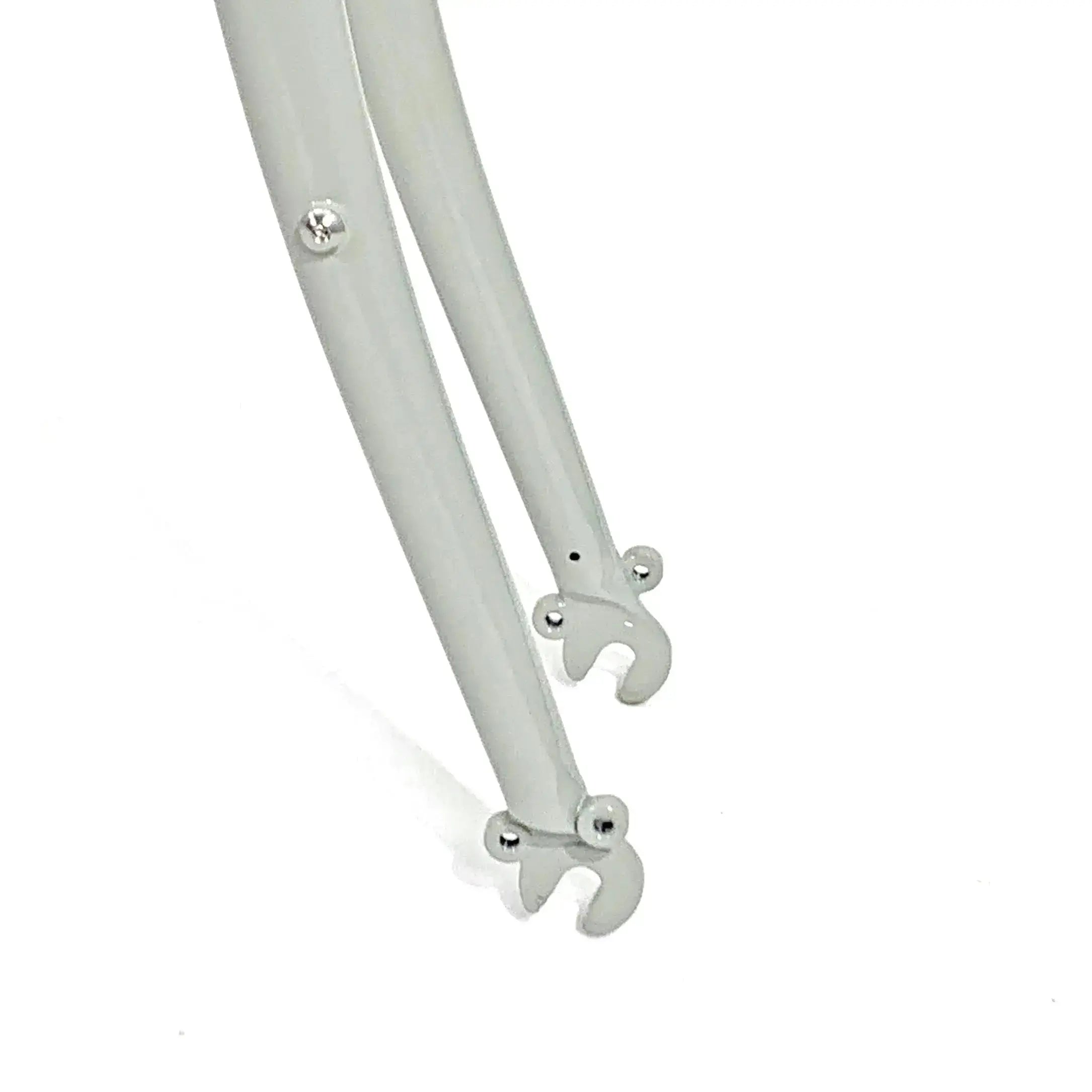

  • Eyelets/bosses: Two rear dropout eyelets, two front fork eyelets, fork blade mount bosses for racks (bolts included) and seat stay mount bosses (bolts included)
  • Tange threadless headset
  • Tire clearance: Rated for 44mm tires (however some customers have successfully installed 50mm tires).

Note: Rear brake bridge is part of the frame for cantilever brakes. Front brake hanger must be purchased separately for front cantilever brakes.

SIZING

We highly recommend reviewing our sizing page before purchasing. Look at both your height and your actual inseam / standover height. The guide below can also provide some general guidelines.

RIDER HEIGHT  FRAME SIZE STANDOVER HEIGHT
5'4 - 5'7 49CM 30.2IN
5'7 - 5'10 52CM 31.3IN
5'10 - 6'1 55CM 32.5IN
6'1 - 6'3 58CM 33.6IN
6'3 - 6'6 60CM 34.8IN

Frame size is measured center-to-center of the seat tube. See more on our sizing page.

COMPONENT SIZING

Note that our frames are designed around a 170mm crank arm length, a 24mm setback seatpost and varying stem lengths (based on frame size and height). You can find our stem length recommendations under the 'DETERMINING BIKE COMPONENTS FIT' section on the sizing page. If you choose different components, it may impact the fit.

IMPORTANT NOTE ON COMPATIBILITY

We cannot guarantee the fit of any specific components - especially cranksets -other than the ones we sell with our complete bikes. If you are planning a specific build please contact us to see if we are aware of any issues. Even so, we will be unable to offer refunds based on lack of fit with any third-party components.
