Description
Our most popular frameset features Reynolds 725 steel and seamless TIG weld.

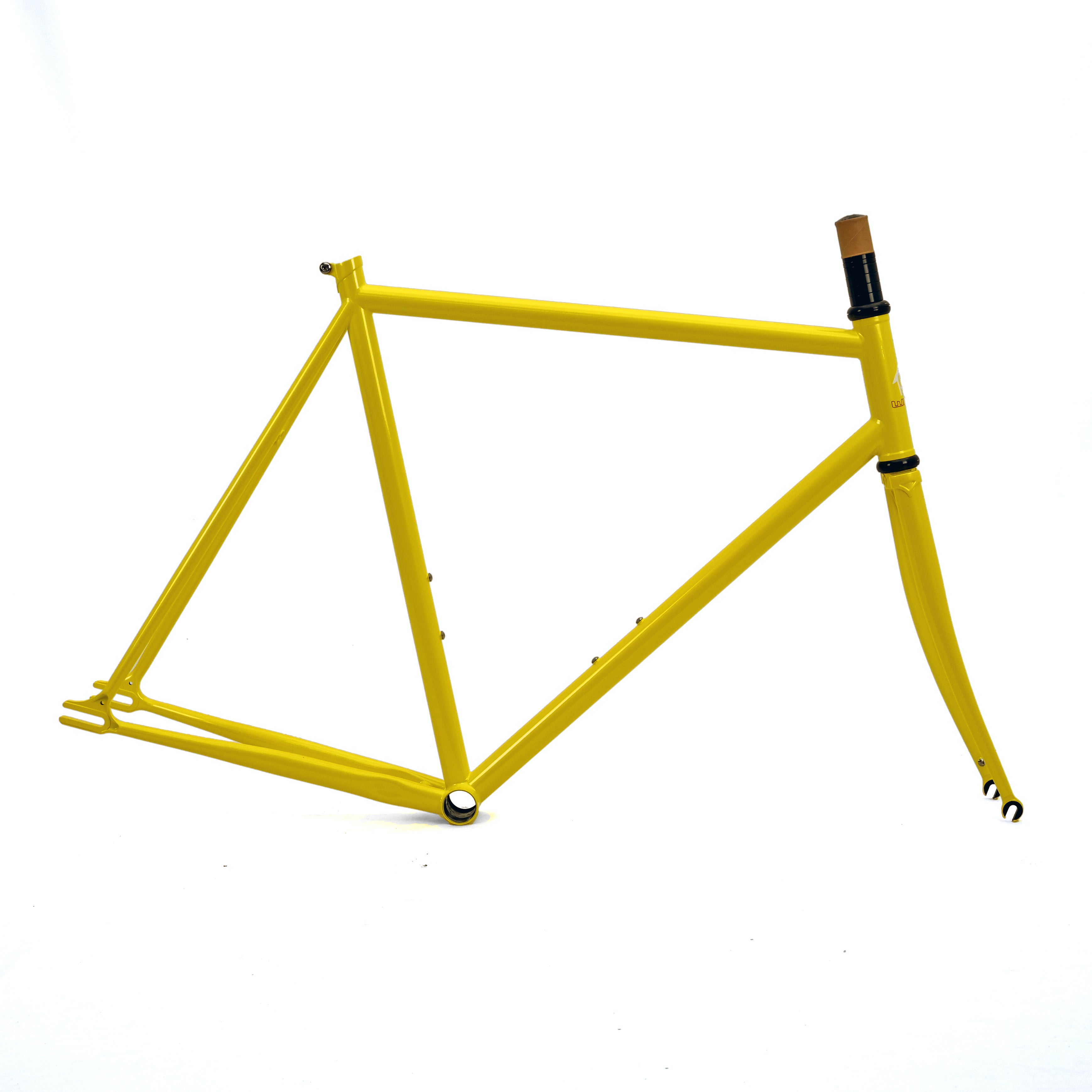

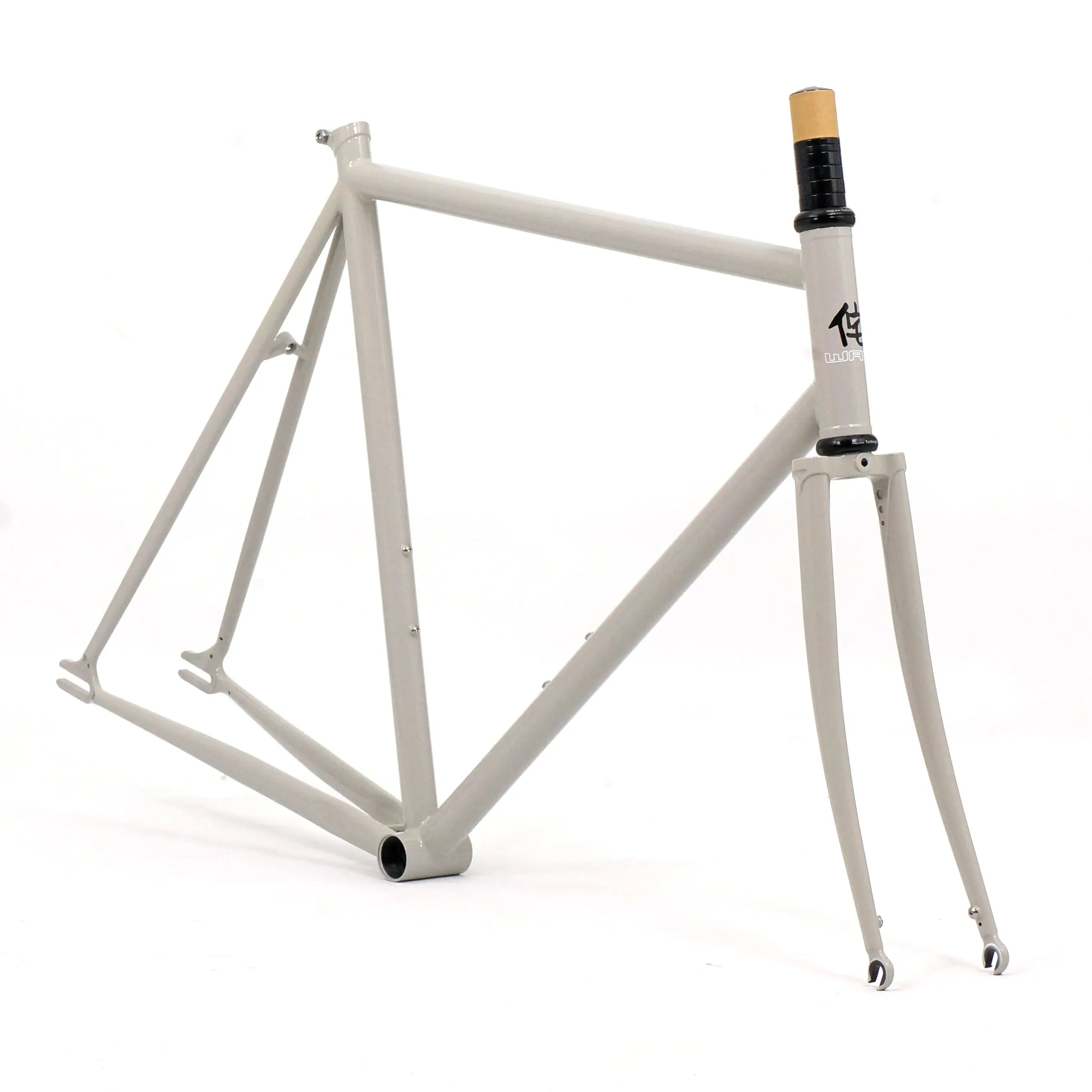

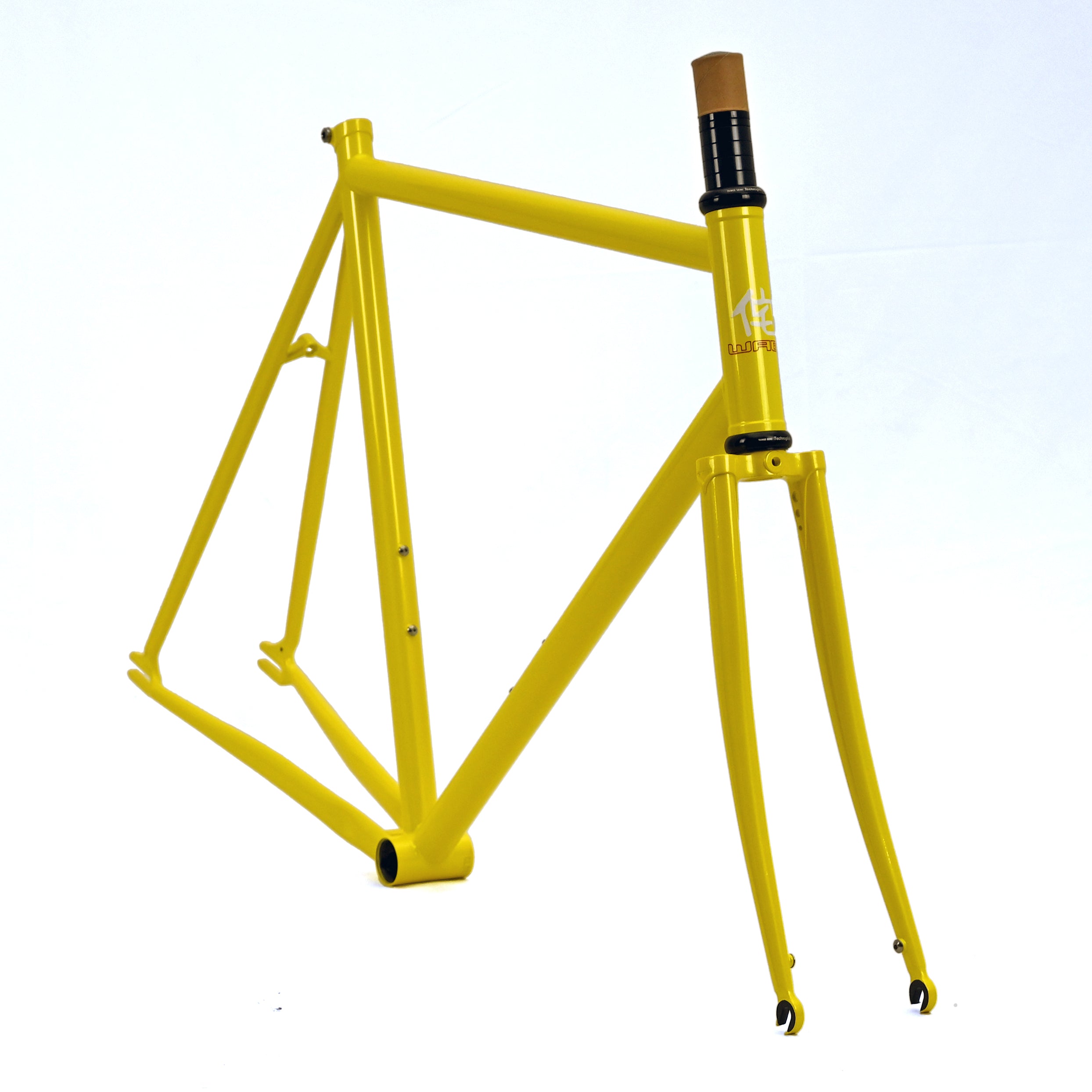

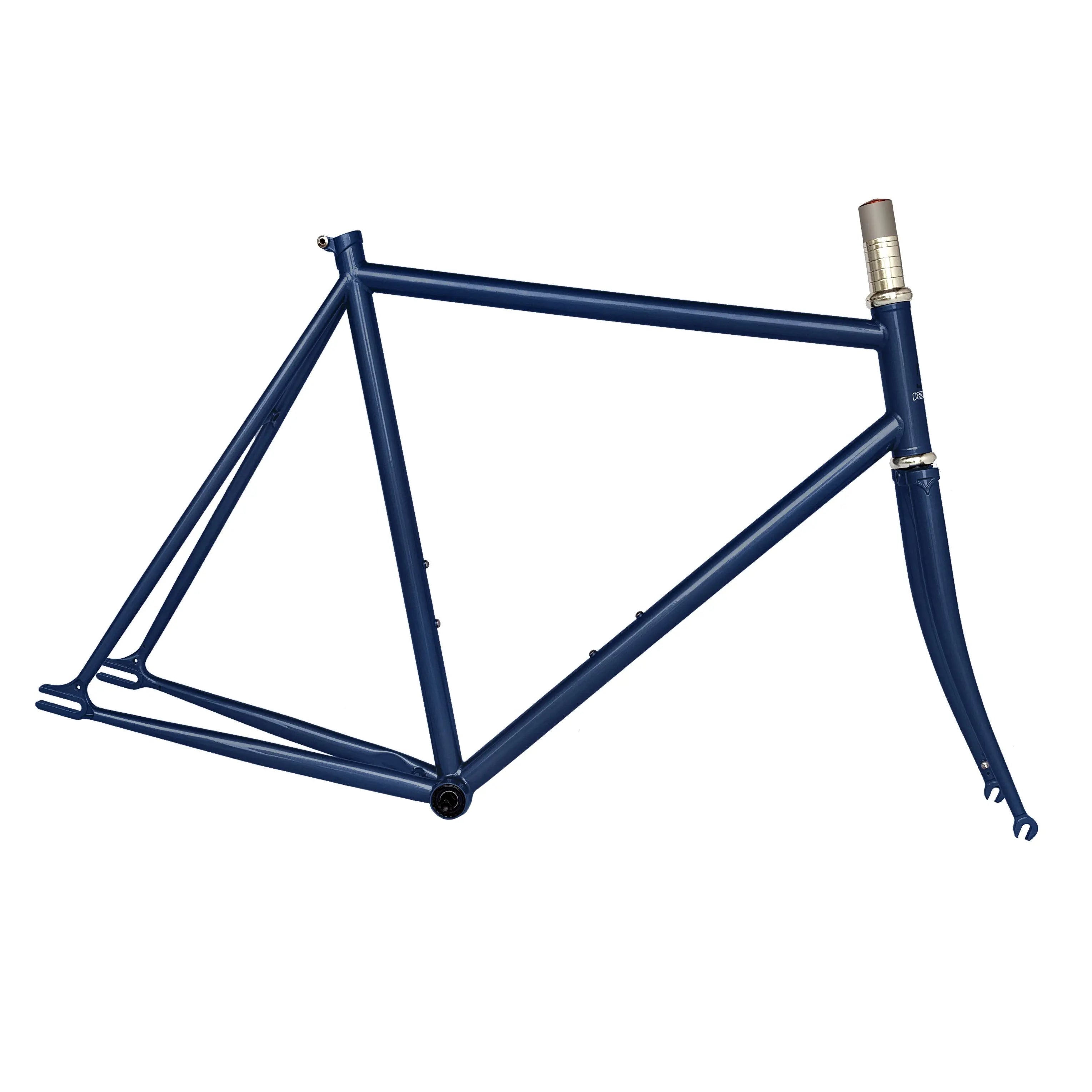

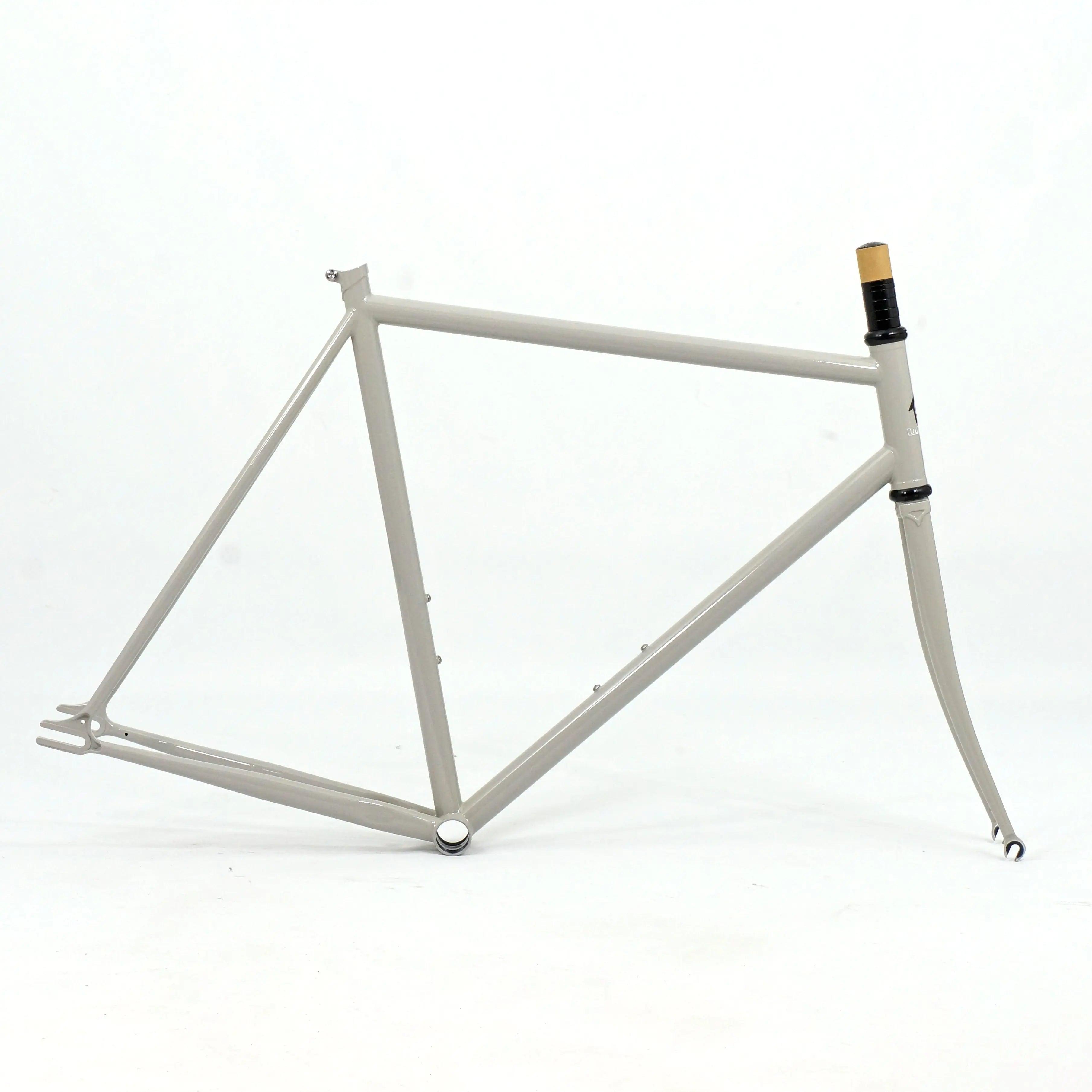

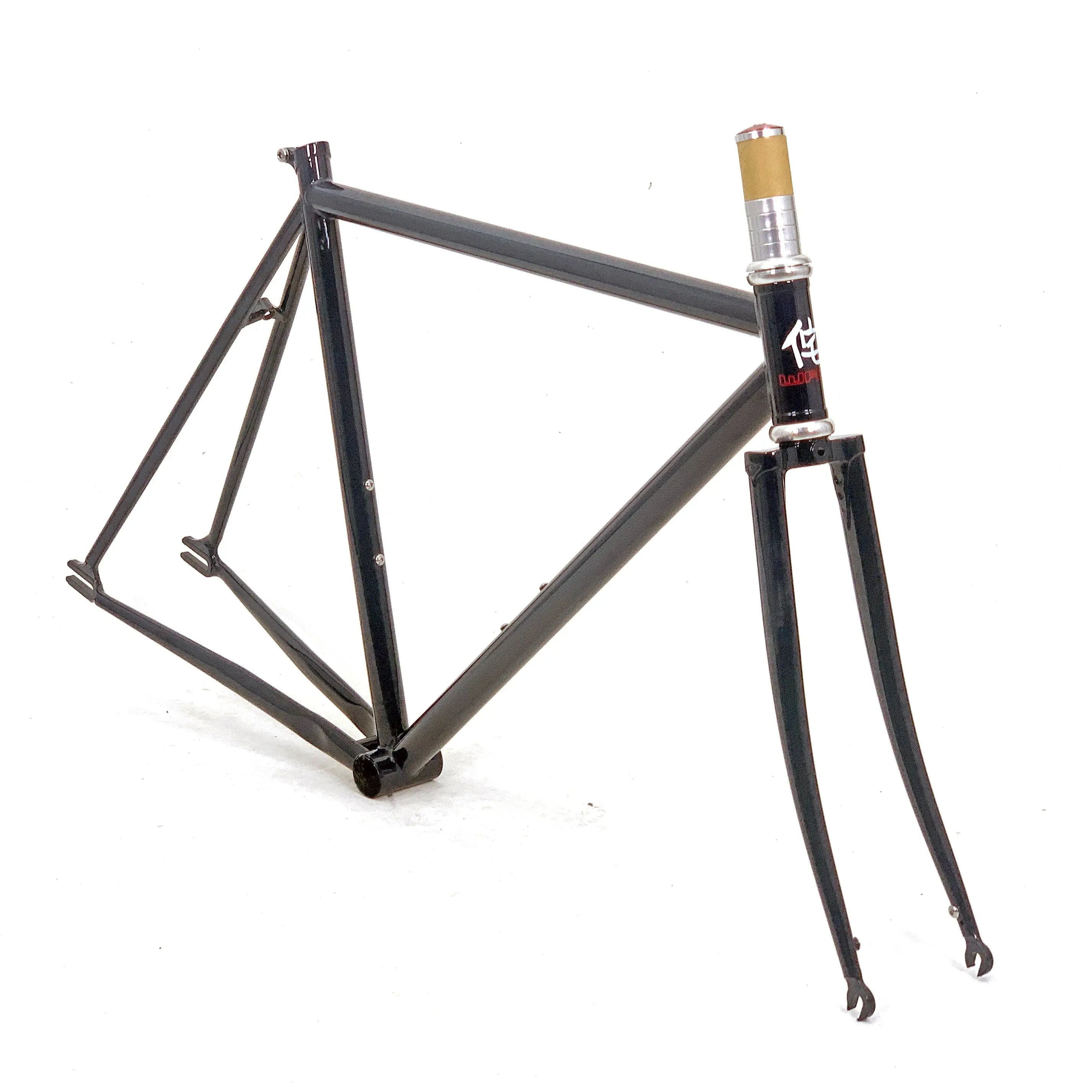

The current colors are Mica Yellow, a metallic yellow; Midnight Blue, a dark blue; and Alpine Gray, a light gray. Custom colors are also an option. See our FAQ for the process.

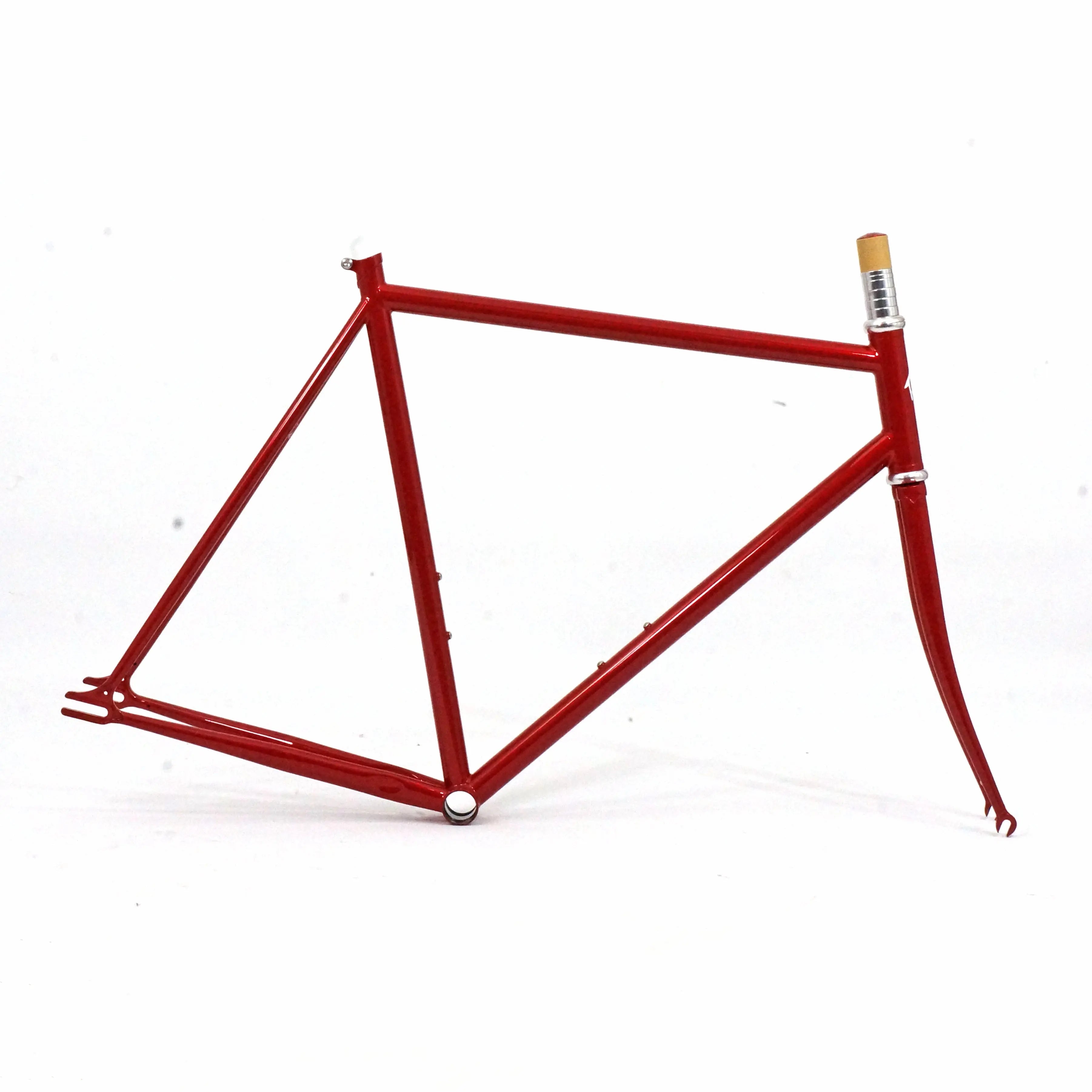

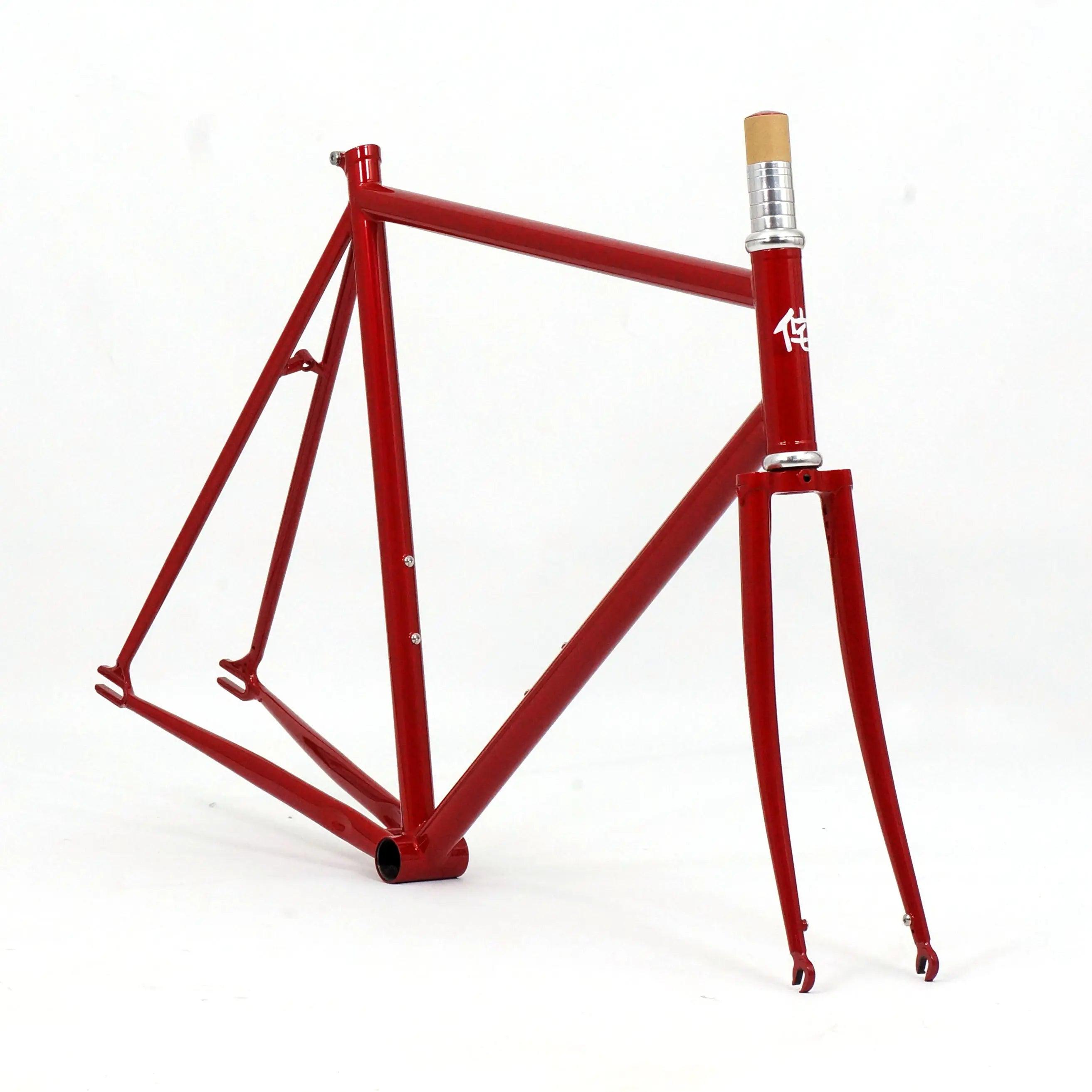

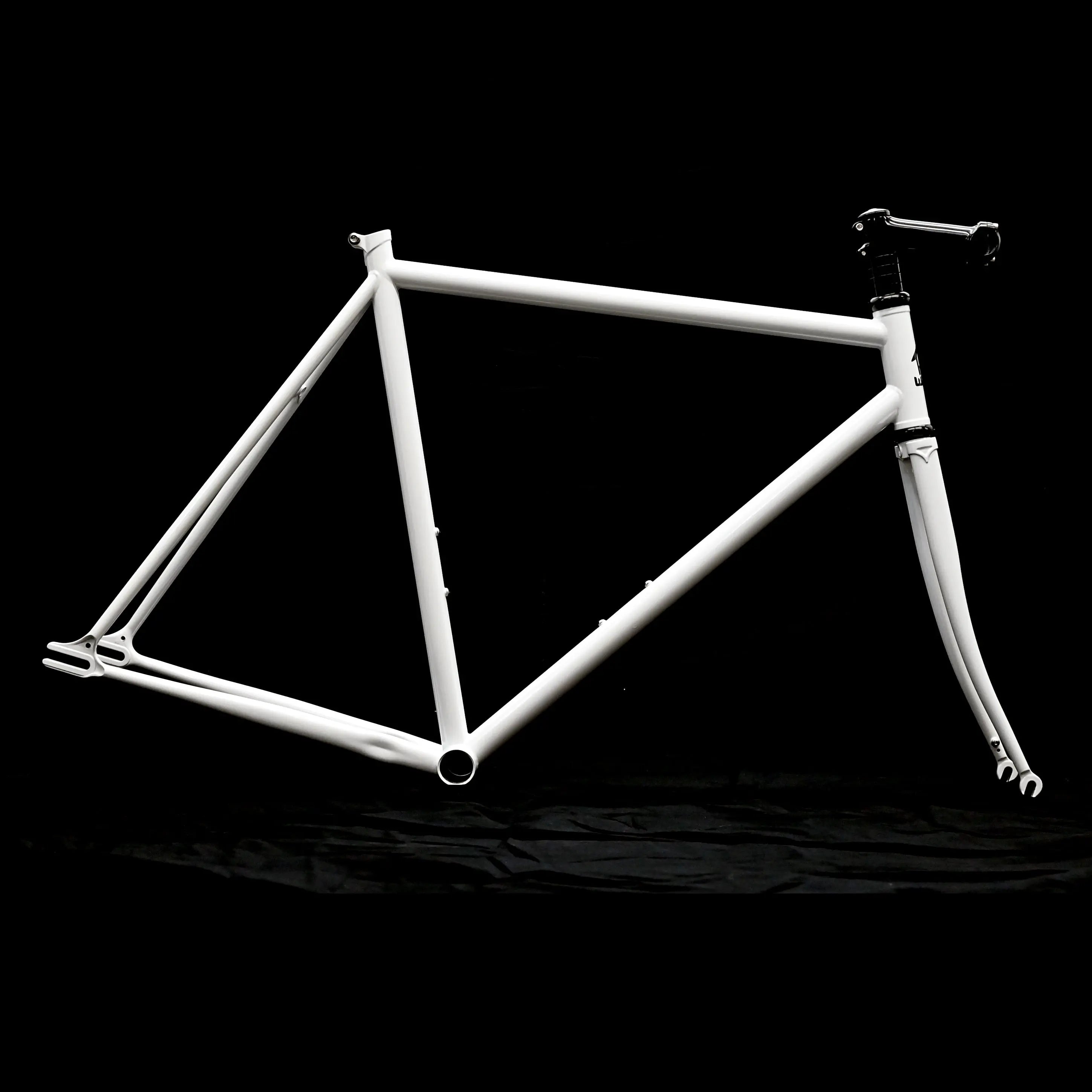

The frame is hand-built using seamless heat-treated, double-butted oversized Reynolds 725 chromoly steel main tubes with forged track-style rear drops. There are braze-ons for two bottle cages on the down tube and seat tube.

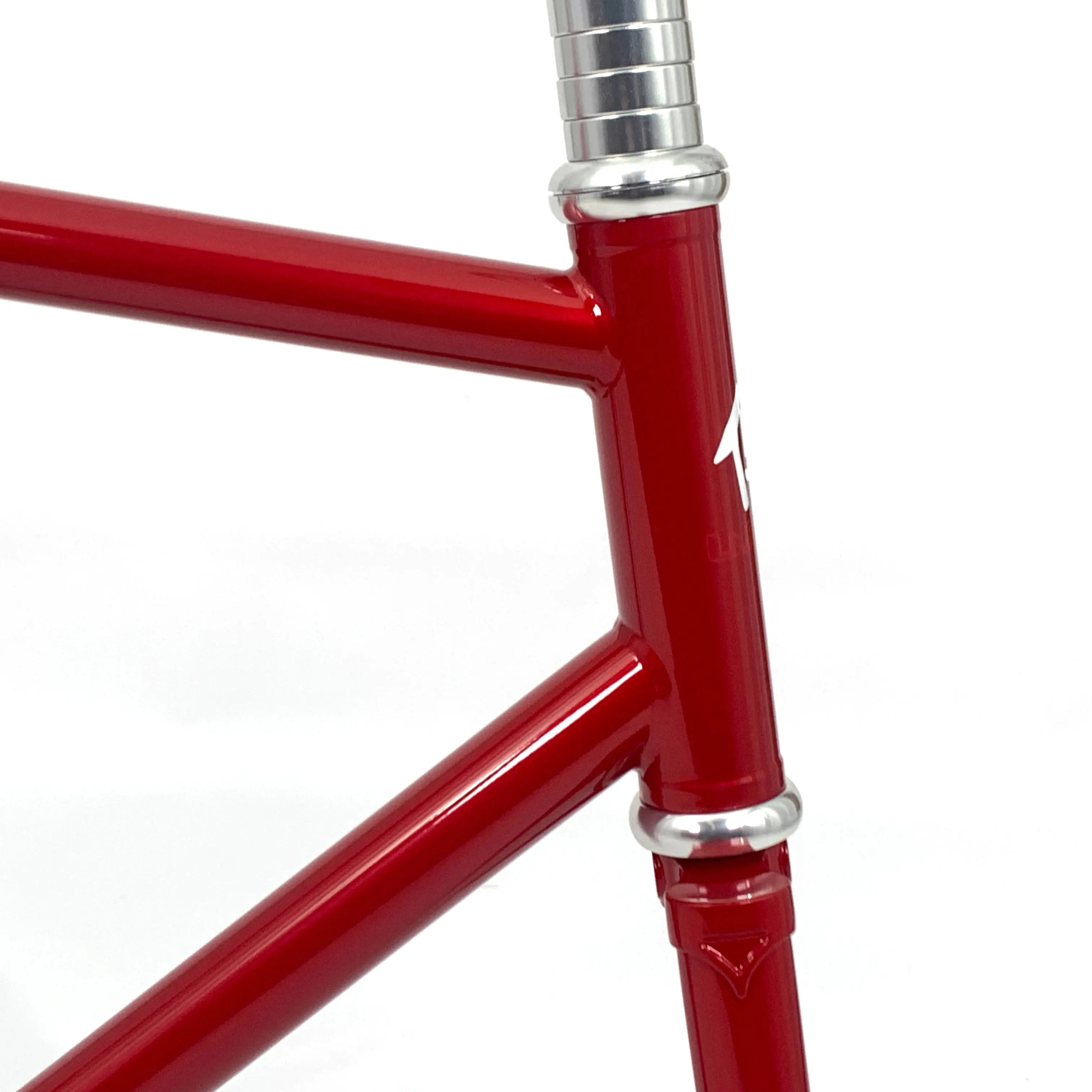

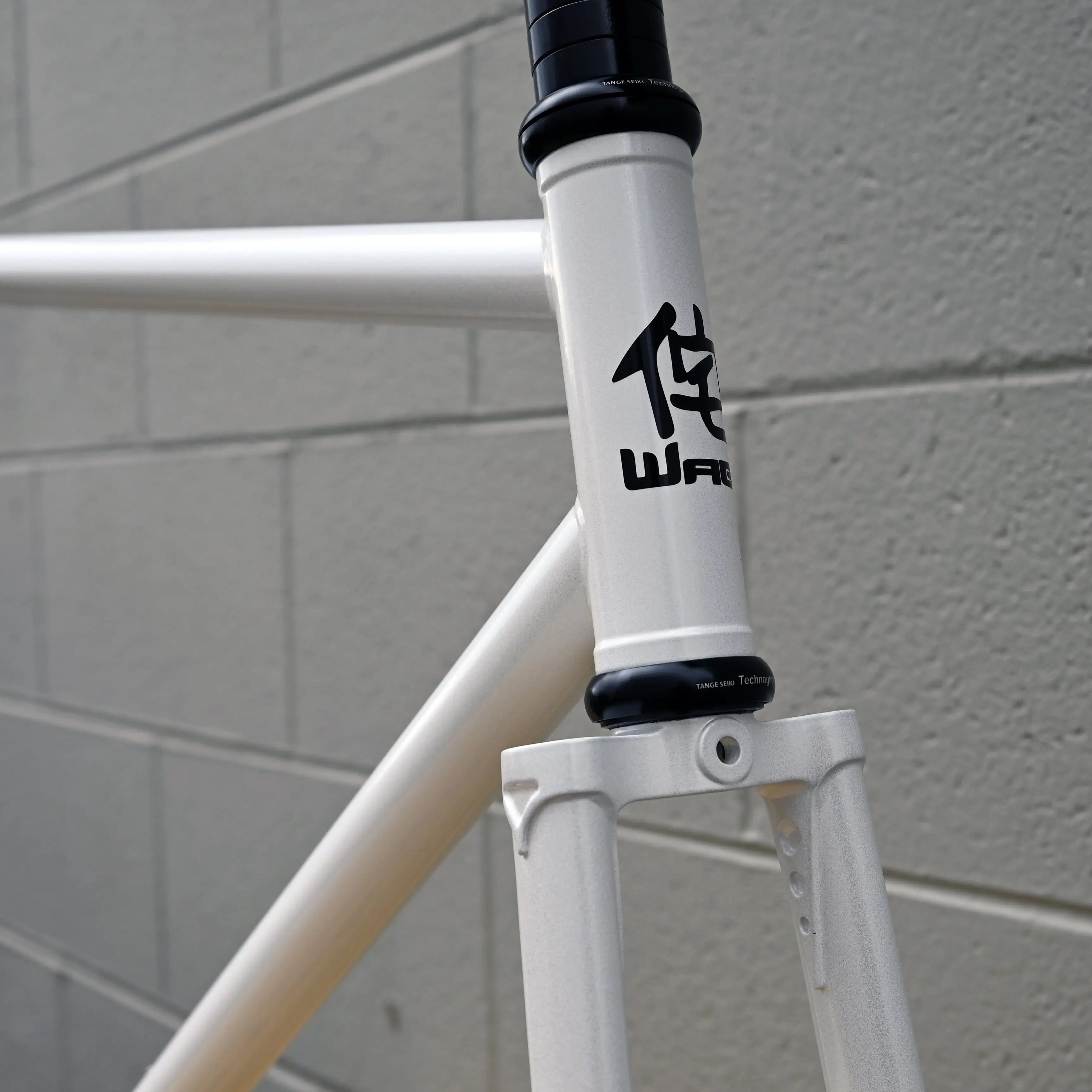

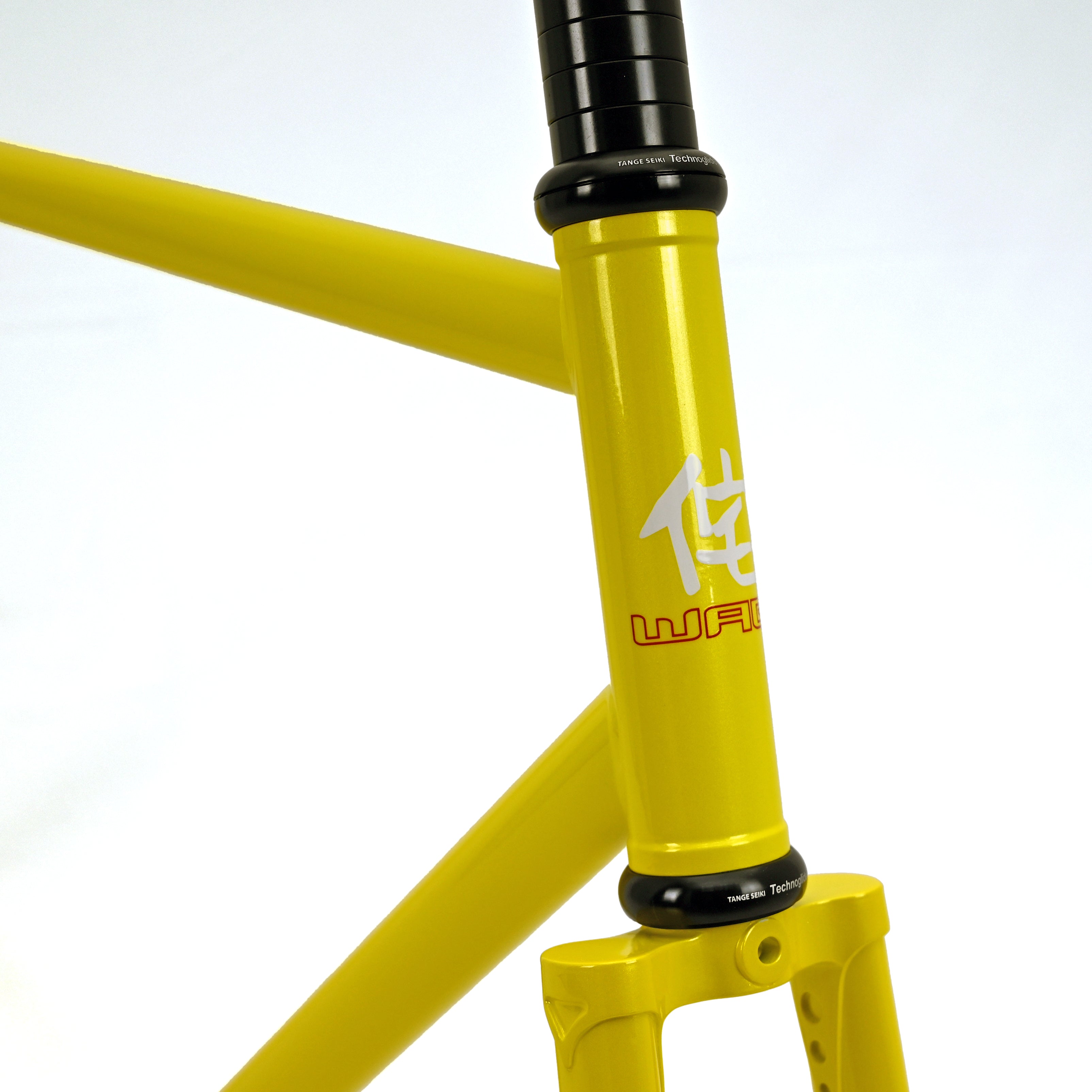

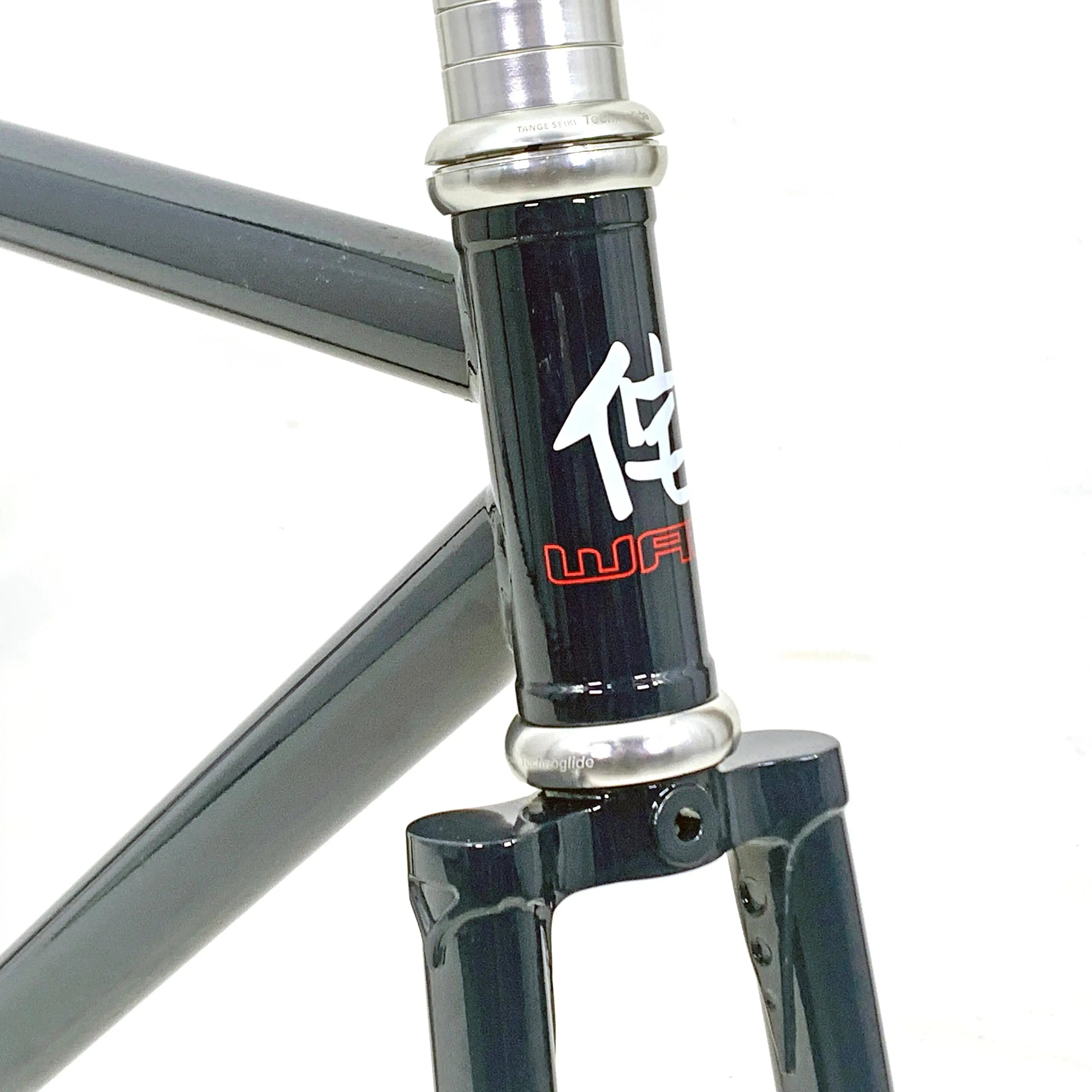

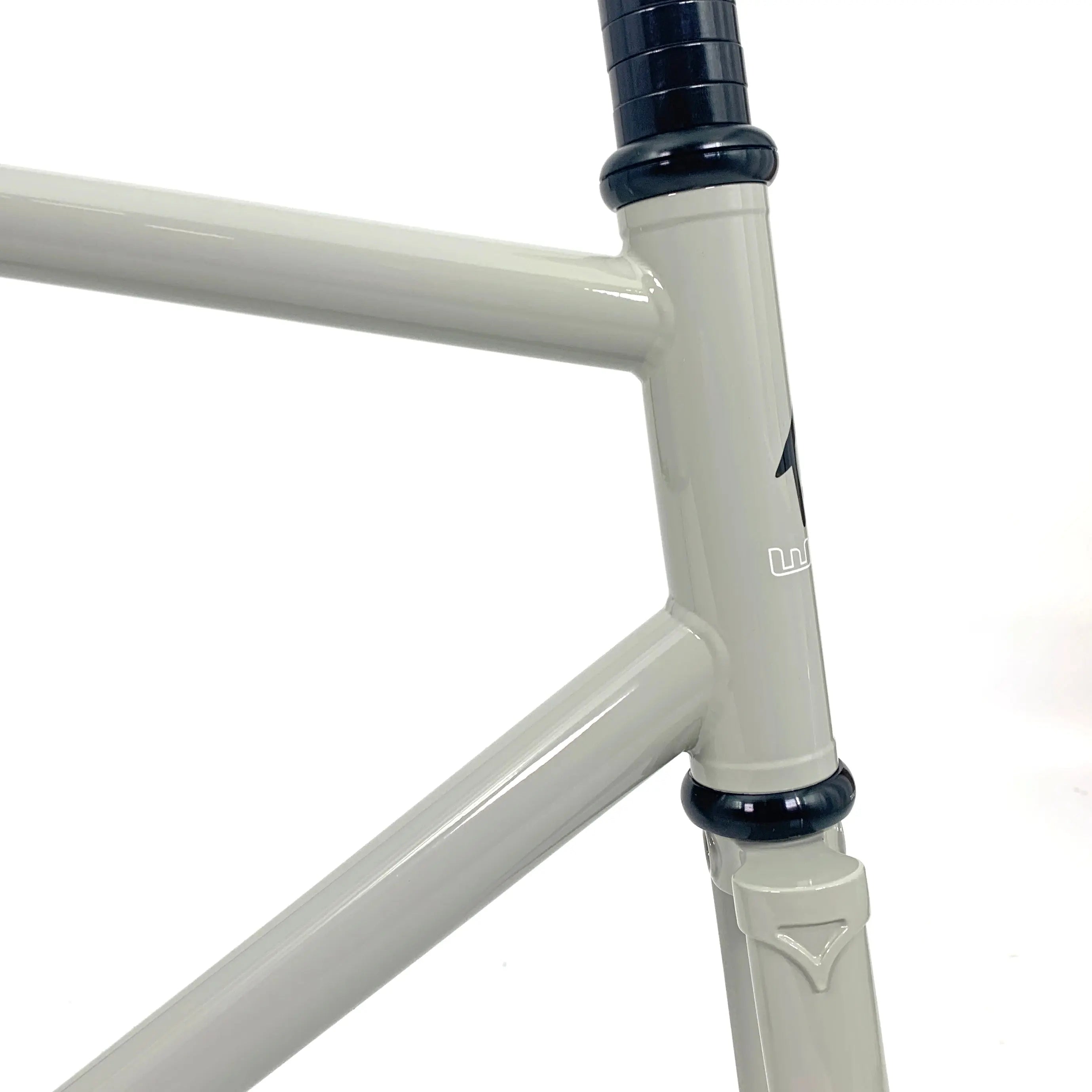

The fork is brazed tapered chromoly steel with an investment cast crown, 1 1/8" steerer, and forged fork ends. It includes a Tange Seiki Technoglide headset with cartridge-type bearings. Choose your headset color from the dropdown menu.
Chainstay are indented on the inside to provide optimal tire clearance and indented on the outside of the drive side to provide better crankarm/chainring clearance.
Tech Specs
- Includes: Frame, fork, headset, and seat post clamp
- Weight (55cm): 5.6 lbs (does not include headset or bolts)
- Accepts 68mm English standard bottom brackets.
- Threadless 1-1/8" steerer tube
- 100m front dropout spacing; 120mm rear dropout spacing
- 27.2mm seatpost compatible
- Accommodates almost all track cranksets (tested to 135mm Q factor).
- Eyelets at inside of front fork and inset at rear dropouts. May require fender/rack modifications and/or spacers to fit properly.
- Bottom bracket is not included.
SIZING
We highly recommend reviewing our sizing page before purchasing. Look at both your height and your actual inseam / standover height. The guide below can also provide some general guidelines.
| RIDER HEIGHT | FRAME SIZE | STANDOVER HEIGHT |
| 5'4 - 5'7 | 49CM | 30.2IN |
| 5'7 - 5'10 | 52CM | 31.3IN |
| 5'10 - 6'1 | 55CM | 32.5IN |
| 6'1 - 6'3 | 58CM | 33.6IN |
| 6'3 - 6'6 | 60CM | 34.8IN |
Frame size is measured center-to-center of the seat tube. See more on our sizing page.
COMPONENT SIZING
Note that our frames are designed around a 170mm crank arm length, a 24mm setback seatpost and varying stem lengths (based on frame size and height). You can find our stem length recommendations under the 'DETERMINING BIKE COMPONENTS FIT' section on the sizing page. If you choose different components, it may impact the fit.
IMPORTANT NOTE ON COMPATIBILITY
We cannot guarantee the fit of any specific component set other than the ones we sell with our complete bikes. If you are planning a specific build please contact us to see if we are aware of any issues. Even so, we will be unable to offer refunds based on lack of fit with any third-party components.
